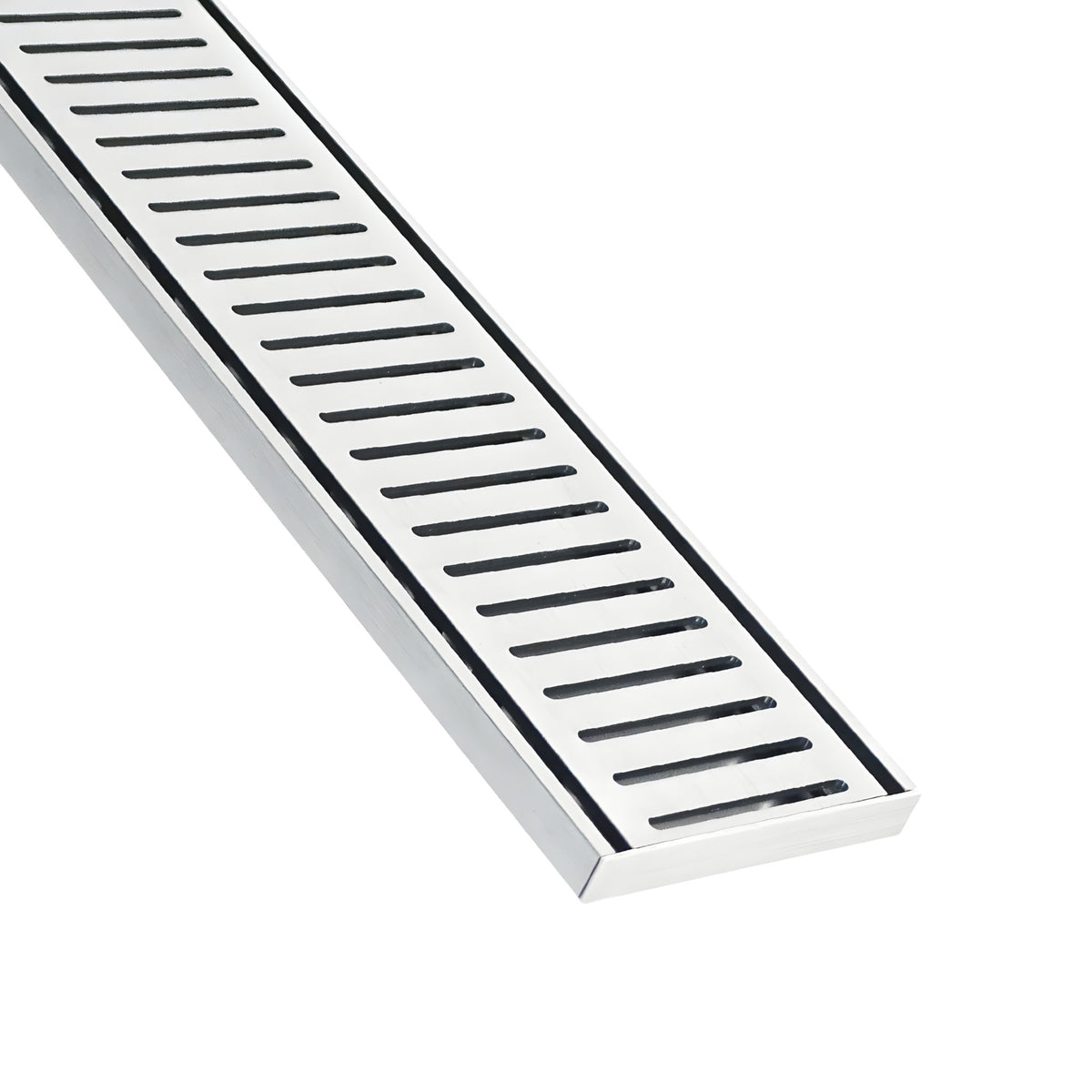

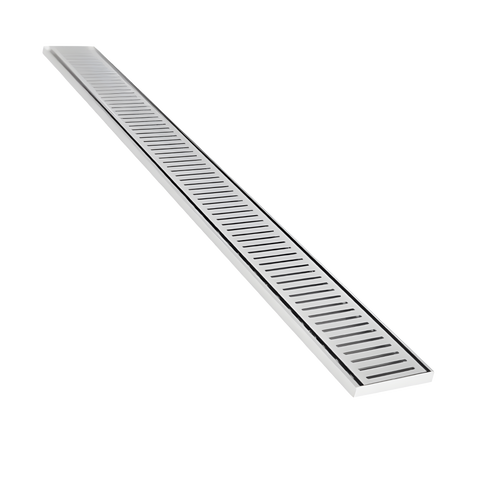

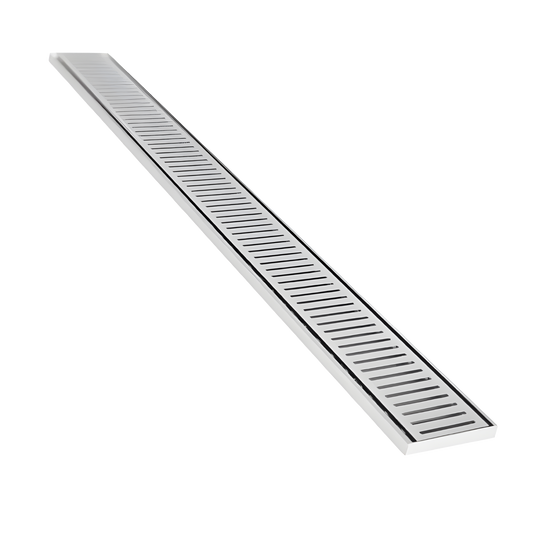

Lauxes Grates NXT 14 – Silver is a shallow, 14mm deep linear floor drain designed for projects where a deeper drainage channel will not fit. Its 100mm wide anodised aluminium profile makes it a practical option for tiled bathrooms, balconies and thresholds requiring a low-profile drainage solution.
The removable roll-out grate provides access for cleaning, while the anti-water-tracking design helps direct runoff into the channel. Cut the channel to the required length and position the outlet to suit the plumbing layout.
Choosing the right configuration
Select the required length, outlet size and Silver finish from the available options. Check the complete floor build-up, falls, waterproofing and waste connection before installation; the grate itself is not a waterproofing system.
Can NXT 14 be cut to length onsite?
Yes. Lauxes states its grates can be cut, joined and adjusted onsite.
What waste outlet sizes suit NXT 14?
40mm, 50mm, 72mm and 80mm.
Does NXT 14 need fall built into the grate?
No. The floor must be graded toward the drain; the grate itself does not require built-in fall.
What is the load rating?
Lauxes rates NXT 14 as Class B with a stated maximum load of 10.2 tons.
Lauxes Grates NXT 14 Linear Drain Kit – Silver Physical Properties
| Property | Value |
|---|---|
| Product Name | Lauxes Grates NXT 14 – Silver |
| Manufacturer Full Lengths | 3000mm, 5600mm |
| Adheseal Sell Lengths | 1000mm, 3000mm, 5600mm |
| Profile Width | 100mm |
| Profile Depth | 14mm |
| Material | Anodised Aluminium |
| Colour | Silver |
| Applications | Indoor, Outdoor |
| Outlet Sizes | 40mm, 50mm, 72mm, 80mm |
| Cutting Capability | Can be cut on site to suit the installation |
| Waste Outlet Positioning | Waste outlet can be positioned to suit the plumbing layout |
| Cleaning Access | Easy roll-out grate |
| Warranty | Lifetime rustproof warranty; 25-year UV stability warranty |
