Use BAT Trims Tile Crosses for: Even grout spacing on straight and diagonal wall tile applications

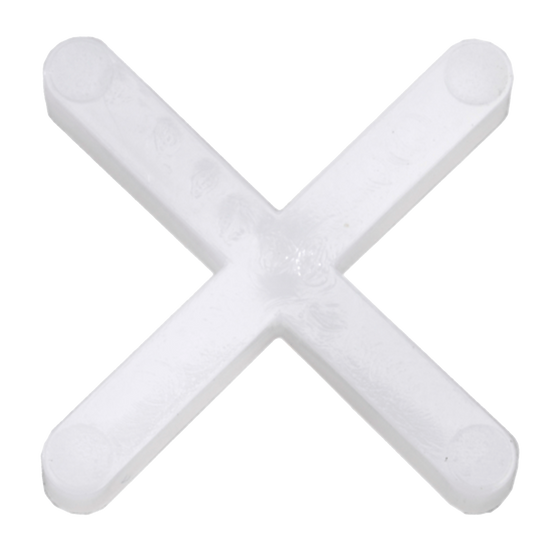

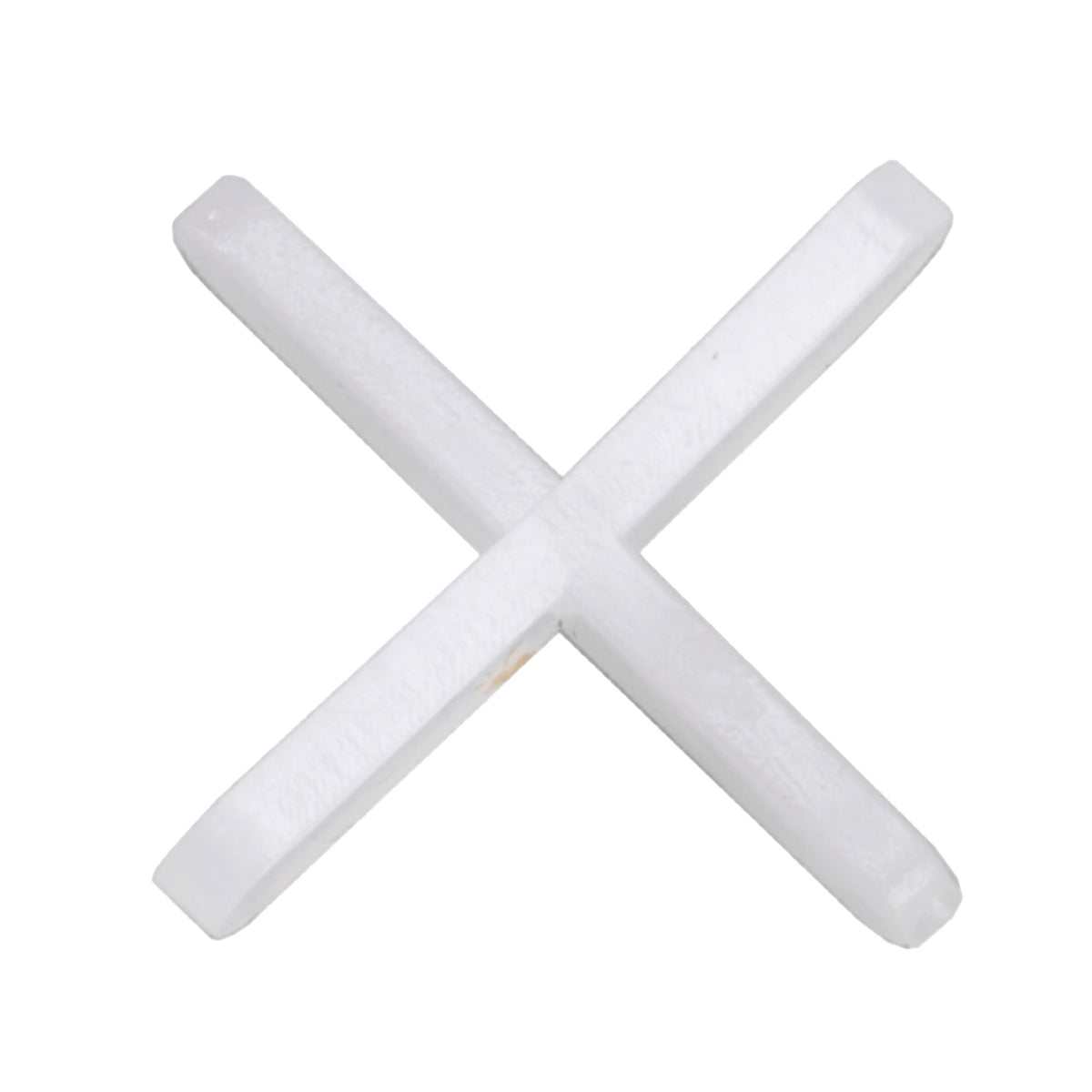

BAT Trims Tile Crosses are premium-grade spacers designed for accurate grout line spacing when laying wall tiles. Available in 1.5mm, 2mm, and 3mm thicknesses, these crosses ensure neat, consistent finishes in both straight and diagonal patterns. Choose from 500, 1,000 or 2,000 piece packs to match project scale – from residential bathrooms to commercial fitouts.
Primer Information: No primer required – these are mechanical tile alignment tools compatible with all tile adhesives and wall surfaces.
Cure Time: Not applicable. Spacers support adhesive setting without chemically interacting – adhesive cure time governs setting.
Coverage Rate: Approx. 25–35 spacers per m² depending on tile dimensions and layout configuration.
Application Temperature Range: Not temperature-sensitive – performs in all Australian climates, from tropical to arid zones.
Chemical Properties: Manufactured from high-strength polypropylene, resistant to deformation, breakage, and interaction with adhesives or grouts.
Key Features of BAT Trims Tile Crosses
- Available in 1.5mm, 2mm, and 3mm sizes for optimal grout width control
- Supports both straight-lay and diagonal wall tile installations
- Trade-friendly pack sizes (500 / 1,000 / 2,000) to reduce reordering mid-job
- Rigid polypropylene construction – won’t compress under tile weight
Why Choose BAT Trims Tile Crosses:
- Achieve uniform grout lines – critical for premium tile aesthetics
- Simple and fast to place or remove – boosts laying efficiency
- Ideal for wall tiling in wet areas, kitchens, and commercial fitouts
- Reusable in some applications – cost-effective for professional tilers
When to Choose BAT Trims Tile Crosses versus Alternatives:
- Choose BAT Trims Tile Crosses over wedge spacers when: Working with flat tile substrates and requiring consistent joint spacing across large surfaces.
- Consider other options when: Dealing with irregular tiles or natural stone that require variable spacing or levelling – wedges or T-spacers may be preferable.
Trade-Specific Applications for BAT Trims Tile Crosses:
For Tilers:
- Maintain perfect grout joints during wall tile installation in bathrooms, splashbacks and feature walls
- Compatible with ceramic, porcelain and stone tiles
- Improves work pace and consistency on high-volume projects
For Builders and Renovators:
- Ensures a professional finish for clients, especially in visible wet areas
- Pack sizes reduce site waste and cost blowouts
- Suitable for both residential and light commercial applications
Application Information
- Required Tools: None required – place manually between tiles. Use with standard trowel and adhesive tools.
- Trade-Specific Tips: For larger format tiles, double up spacers for consistent alignment across tiles.
- Common Issues and Solutions: If spacers shift, embed lightly in adhesive bed before tile placement.
Storage and Shelf Life
- Storage Requirements: Store in a dry, shaded location – unaffected by temperature or humidity
- Shelf Life Information: Unlimited under normal storage conditions
- Temperature Considerations: Product remains stable from -10°C to 50°C (14°F to 122°F)
Certifications and Compliance
- Australian Building Code compliant spacing support
- Manufactured under ISO 9001:2015 certified processes
Frequently asked questions
Can these tile crosses be reused?
Yes, BAT Trims Tile Crosses can often be reused. Remove them before the tile adhesive fully cures and clean any adhesive residue thoroughly to maintain consistency.
Are BAT Trims Tile Crosses suitable for floor tiling?
These tile crosses are primarily designed for wall tiling. For floor tiling or larger format, heavier tiles, a dedicated tile levelling system is usually more appropriate to manage weight and flatness.
How many tile crosses are needed per square metre?
The quantity depends on your tile size and layout. For standard wall tiles in a straight pattern, expect to use approximately 25–35 spacers per square metre.
Can these be used for diagonal tile patterns?
Yes, BAT Trims Tile Crosses are effective for both straight and diagonal tile layouts. They provide consistent spacing and alignment across angled installations.
Applications and benefits
| Application | Key benefit | Primary trades |
|---|---|---|
| Bathroom and kitchen wall tiling | Maintains consistent grout lines for a clean, professional finish in wet areas. | Tilers, Builders |
| Feature walls and splashbacks | Ensures even tile spacing and alignment across visible surfaces. | Tilers, Renovators |
| Commercial interior wall tiling | Supports accurate installation and reduces rework on large-scale projects. | Commercial Tilers, Project Managers |
How to apply BAT Trims Tile Crosses:
- Spread tile adhesive on the wall using a notched trowel suitable for your tile size.
- Place your first tile and insert BAT Trims Tile Crosses at each corner or along edges depending on tile size.
- Continue placing tiles and crosses in alignment, checking with a spirit level as you go.
- For diagonal layouts, place spacers at 45° orientation and adjust for overlap if required.
- Remove crosses before grout is applied, ideally once adhesive has set but before full cure.
Product limitations
- Not for: Irregular stone or tiles with significant natural edge variation. Wedge spacers are better suited for these applications.
- Limited use: In floor tiling unless combined with tile levelling clips to manage tile weight and flatness.
- Not a substitute for: Levelling systems when flatness is critical across large-format tiles.
Safety and handling
BAT Trims Tile Crosses are made from inert plastic and are non-hazardous under normal use. Safety guidance pertains to general tiling practice and associated materials.
Personal protective equipment
Gloves are recommended for prolonged use, especially when handling tile adhesives. Safety glasses are advisable during tile cutting or other related tasks.
Ventilation
Ensure adequate ventilation when working with tile adhesives and grouts, as these materials may contain volatile components. The spacers themselves are inert and do not require specific ventilation.
First aid
- Skin contact: In case of skin contact with tile adhesive, rinse thoroughly with water. Refer to the tile adhesive's Safety Data Sheet for specific first aid measures.
- Ingestion/Eye contact: Unlikely. If product splinter enters eye, flush with water. If swallowed, seek medical advice.
Storage and disposal
Store BAT Trims Tile Crosses away from direct sunlight and heat sources to maintain plastic strength. Dispose of used or damaged spacers with general construction waste.
Substrate guide
Consistent tile spacing relies on correct substrate preparation, regardless of the tile type.
Ceramic wall tiles
Surface prep: Ensure surfaces are clean, dry, and structurally sound before tiling. Remove any dust, grease, or loose material.
Primer: Not required for the tile crosses themselves. Use appropriate primer for the substrate as per tile adhesive manufacturer's instructions.
Porcelain wall tiles
Surface prep: Ensure surfaces are clean, dry, and structurally sound before tiling. Remove any dust, grease, or loose material.
Primer: Not required for the tile crosses themselves. Use appropriate primer for the substrate as per tile adhesive manufacturer's instructions.
Calibrated stone wall tiles
Surface prep: Ensure surfaces are clean, dry, and structurally sound before tiling. Remove any dust, grease, or loose material. Verify stone is calibrated to minimise edge variation.
Primer: Not required for the tile crosses themselves. Use appropriate primer for the substrate as per tile adhesive manufacturer's instructions.
BAT Trims Tile Crosses Physical Properties
| Property | Value |
|---|---|
| Material | Polypropylene |
| Chemical Composition | Non-reactive, Adhesive-Resistant |
| Colour | White |
| Application Temperature Range | -10°C to 50°C |
| Coverage Rate | 25–35 spacers per m² (approximate) |
| Documented Substrates | Ceramic, Porcelain, Calibrated Stone (Wall Tiles) |
| Primer Guidance | None required for spacers |
| Classification | Non-Hazardous, Inert Plastic |
| Certifications | ISO 9001:2015 Manufacturing Process |

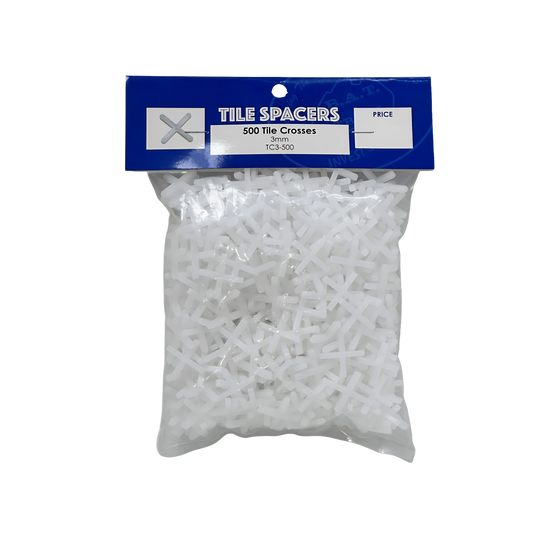

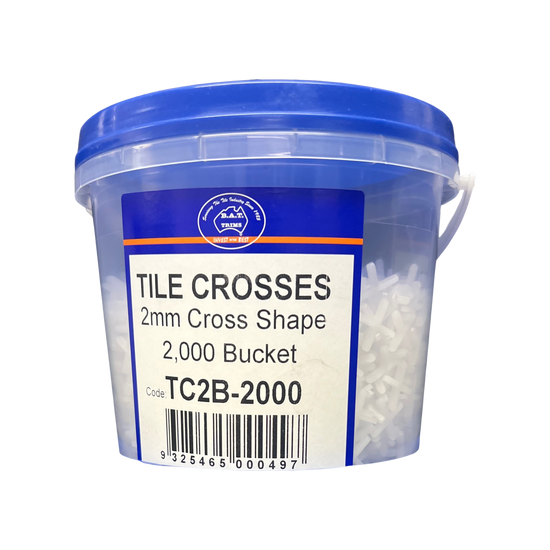

| Packaging | 500 Piece Bag, 1,000 Piece Bag, 2,000 Piece Bucket |
| Shelf Life | Unlimited (under normal conditions) |
| Reusable | Yes (if removed before adhesive cures) |
