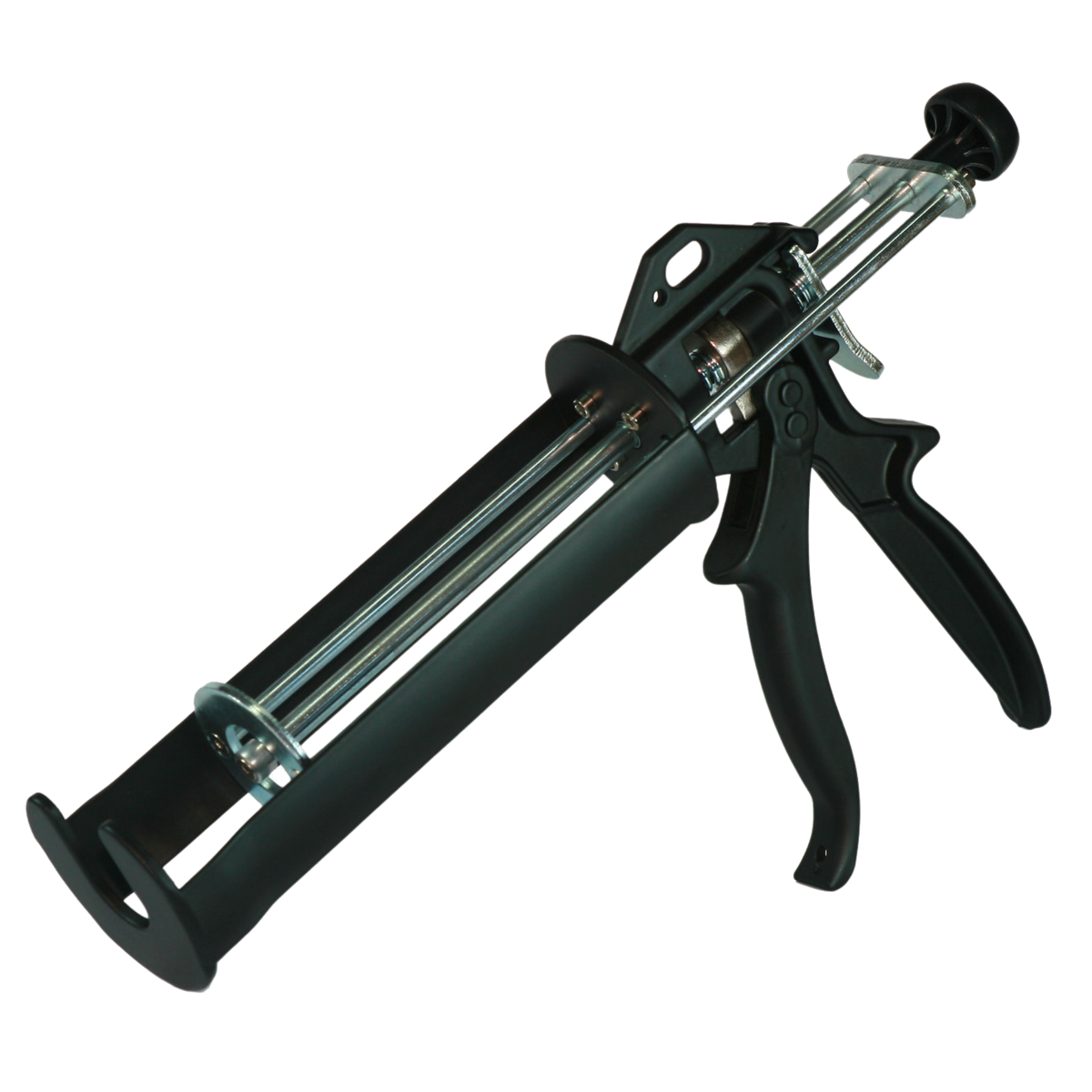

A coaxial twin gun for 400ml 10:1 cartridges: two-part epoxy, PU, and acrylic structural adhesives for deep-hole anchoring and autoglass work. The reinforced steel frame delivers the thrust that viscous coaxial material needs, and the alloy trigger keeps the flow smooth rather than surging.
Working range 5 to 35 degrees: outside that, expect the chemistry, not the gun, to fight you.
Frequently Asked Questions About Twin Component Cartridge Gun 400ml 10:1
Q: How do I properly load a two-component cartridge?
A: Insert the cartridge into the barrel ensuring it is seated firmly. Attach the static mixing nozzle and prime the material until both components flow evenly.
Q: Can this gun handle thick adhesives?
A: Yes, the 10:1 thrust ratio and solid steel drive mechanism are designed to dispense thick, high-viscosity materials with ease and consistency.
Q: Is it compatible with all 400ml two-part cartridges?
A: The gun is compatible with standard 400ml coaxial cartridges with a 10:1 mix ratio. Always verify cartridge dimensions for a snug fit.
Q: What should I do if the material stops dispensing?
A: Check for blockage in the nozzle or improperly seated cartridge. Clear any cured material and ensure the plunger is aligned correctly.
Q: Are there specific cleaning or disposal guidelines?
A: After use, remove the cartridge and nozzle, and clean any residue with a suitable solvent. Dispose of used cartridges according to local regulations.
Twin Component Cartridge Gun 400ml 10:1 can be used on the following substrates:
- Concrete – Ideal for structural epoxy anchoring systems
- Metal – Suitable for industrial bonding applications
- Plastics – Compatible with specialist two-part adhesives
- Timber – Great for carpentry and joinery requiring structural strength
Twin Component Cartridge Gun 400ml 10:1 Physical Properties
| Property | Value |
|---|---|
| Material | Aluminium-Alloy Handle, Reinforced Steel Frame |
| Dispensing Ratio | 10:1 |
| Cartridge Compatibility | 400ml Coaxial, 10:1 Ratio |
| Application Temperature | 5°C to 35°C (41°F to 95°F) |
| Storage Temperature | 5°C to 50°C (41°F to 122°F) |
| Chemical Compatibility | Epoxy, Polyurethane, Acrylic Adhesives |
| Certifications | ISO 9001, Australian Construction Equipment Standards |
