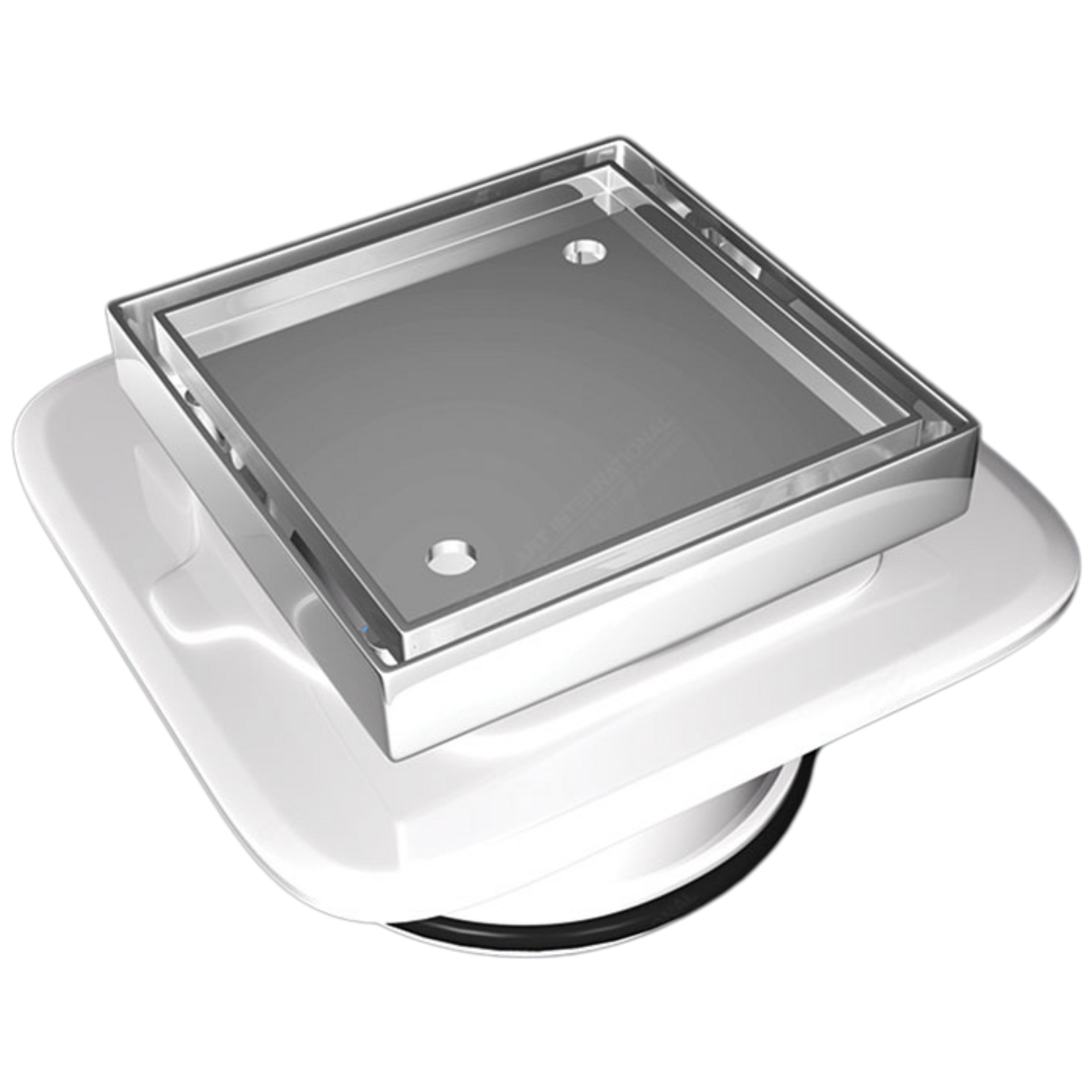

Square stainless steel shower drain with perforated grate on white mounting base

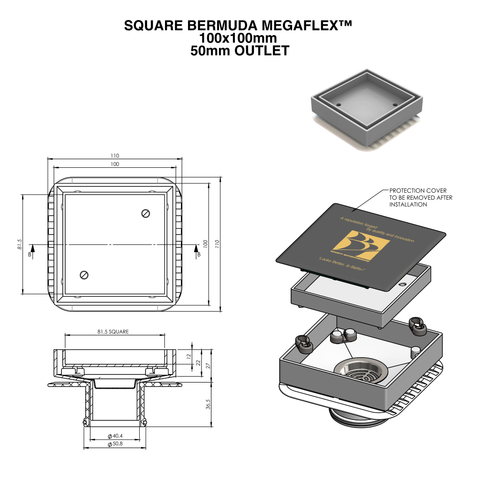

Square Bermuda Mega Flex™ 100x100mm floor drain with 50mm outlet & protection cover - exploded technical view

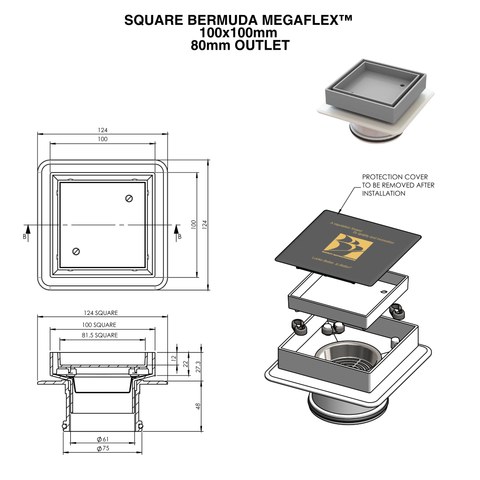

Square Bermuda MegaFlex™ 100x100mm shower drain grate, 80mm outlet, exploded view with dimensions.

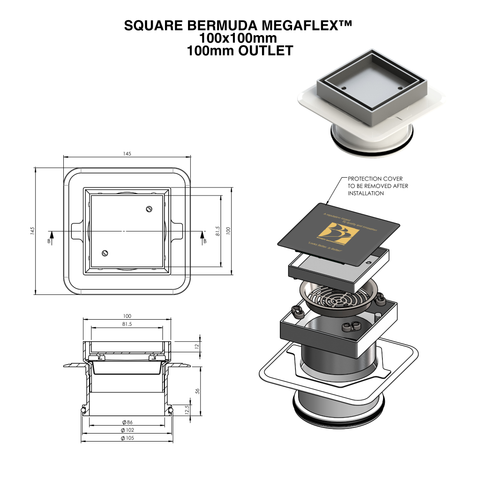

Square Bermuda MegaFlex™ 100x100mm floor drain grate, 100mm outlet, exploded view with protection cover.
ART Square Bermuda Megaflex 50mm outlet, Brushed Gold, 11205.23
ART Square Bermuda Megaflex 100mm outlet, Brushed Nickel, 11203.06
ART Square Bermuda Megaflex tile-insert 100×100 mm 50 mm outlet, Chrome, product code 11205.01
ART Square Bermuda Megaflex tile-insert 100×100 mm 50 mm outlet, Matt Black, product code 11205.25
ART Square Bermuda Megaflex tile-insert 100×100 mm 50 mm outlet, Polished Brass, product code 11205.04
ART Square Bermuda Megaflex tile-insert 100×100 mm 50 mm outlet, Brushed Nickel, product code 11205.06
ART Square Bermuda Megaflex tile-insert 100×100 mm 80 mm outlet, Chrome, product code 11204.01
ART Square Bermuda Megaflex tile-insert 100×100 mm 80 mm outlet, Polished Brass, product code 11204.04
ART Square Bermuda Megaflex tile-insert 100×100 mm 80 mm outlet, Brushed Gold, product code 11204.23
ART Square Bermuda Megaflex tile-insert 100×100 mm 80 mm outlet, Matt Black, product code 11204.25
ART Square Bermuda Megaflex tile-insert 100×100 mm 100 mm outlet, Chrome, product code 11203.01
ART Square Bermuda Megaflex tile-insert 100×100 mm 100 mm outlet, Polished Brass, product code 11203.04
ART Square Bermuda Megaflex tile-insert 100×100 mm 100 mm outlet, Brushed Gold, product code 11203.23
ART Square Bermuda Megaflex tile-insert 100×100 mm 100 mm outlet, Matt Black, product code 11203.25
ART Square Bermuda Megaflex 100×100 mm 50 mm outlet, Brushed Rose Gold, product code 11205.28
ART Square Bermuda Megaflex 100×100 mm 50 mm outlet, Brushed Gun Metal Grey, product code 11205.29
ART Square Bermuda Megaflex 100×100 mm 80 mm outlet, Brushed Nickel, product code 11204.06
ART Square Bermuda Megaflex 100×100 mm 80 mm outlet, Brushed Rose Gold, product code 11204.28
ART Square Bermuda Megaflex 100×100 mm 80 mm outlet, Brushed Gun Metal Grey, product code 11204.29
ART Square Bermuda Megaflex 100×100 mm 100 mm outlet, Brushed Rose Gold, product code 11203.28
ART Square Bermuda Megaflex 100×100 mm 100 mm outlet, Brushed Gun Metal Grey, product code 11203.29
ART Square Bermuda Megaflex 100×100 mm 100 mm outlet, Gun Metal Grey, product code 11203.09
ART Square Bermuda Megaflex 100×100 mm 100 mm outlet, Satin Chrome, product code 11203.02
Square stainless steel shower drain with perforated grate on white mounting base
Square Bermuda Mega Flex™ 100x100mm floor drain with 50mm outlet & protection cover - exploded technical view
Square Bermuda MegaFlex™ 100x100mm shower drain grate, 80mm outlet, exploded view with dimensions.
Square Bermuda MegaFlex™ 100x100mm floor drain grate, 100mm outlet, exploded view with protection cover.
ART Square Bermuda Megaflex 50mm outlet, Brushed Gold, 11205.23
ART Square Bermuda Megaflex 100mm outlet, Brushed Nickel, 11203.06
ART Square Bermuda Megaflex tile-insert 100×100 mm 50 mm outlet, Chrome, product code 11205.01
ART Square Bermuda Megaflex tile-insert 100×100 mm 50 mm outlet, Matt Black, product code 11205.25
ART Square Bermuda Megaflex tile-insert 100×100 mm 50 mm outlet, Polished Brass, product code 11205.04
ART Square Bermuda Megaflex tile-insert 100×100 mm 50 mm outlet, Brushed Nickel, product code 11205.06
ART Square Bermuda Megaflex tile-insert 100×100 mm 80 mm outlet, Chrome, product code 11204.01
ART Square Bermuda Megaflex tile-insert 100×100 mm 80 mm outlet, Polished Brass, product code 11204.04
ART Square Bermuda Megaflex tile-insert 100×100 mm 80 mm outlet, Brushed Gold, product code 11204.23
ART Square Bermuda Megaflex tile-insert 100×100 mm 80 mm outlet, Matt Black, product code 11204.25
ART Square Bermuda Megaflex tile-insert 100×100 mm 100 mm outlet, Chrome, product code 11203.01
ART Square Bermuda Megaflex tile-insert 100×100 mm 100 mm outlet, Polished Brass, product code 11203.04
ART Square Bermuda Megaflex tile-insert 100×100 mm 100 mm outlet, Brushed Gold, product code 11203.23
ART Square Bermuda Megaflex tile-insert 100×100 mm 100 mm outlet, Matt Black, product code 11203.25
ART Square Bermuda Megaflex 100×100 mm 50 mm outlet, Brushed Rose Gold, product code 11205.28
ART Square Bermuda Megaflex 100×100 mm 50 mm outlet, Brushed Gun Metal Grey, product code 11205.29
ART Square Bermuda Megaflex 100×100 mm 80 mm outlet, Brushed Nickel, product code 11204.06
ART Square Bermuda Megaflex 100×100 mm 80 mm outlet, Brushed Rose Gold, product code 11204.28
ART Square Bermuda Megaflex 100×100 mm 80 mm outlet, Brushed Gun Metal Grey, product code 11204.29
ART Square Bermuda Megaflex 100×100 mm 100 mm outlet, Brushed Rose Gold, product code 11203.28
ART Square Bermuda Megaflex 100×100 mm 100 mm outlet, Brushed Gun Metal Grey, product code 11203.29
ART Square Bermuda Megaflex 100×100 mm 100 mm outlet, Gun Metal Grey, product code 11203.09
ART Square Bermuda Megaflex 100×100 mm 100 mm outlet, Satin Chrome, product code 11203.02

100x100mm Square Bermuda Megaflex™

Buy in bulk and savePay $131.27 instead of $145.85 per unit when you buy a pack of 20

100 × 100 mm Bermuda Megaflex tile-insert waste with solid-brass upper fitting and ABS leak-control base for tiled wet areas.

Vendor: ART Australia
SKU: 130300032
Availability: In Stock
$61.80
$61.80
Prices do not include GST
Guaranteed safe checkout
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
  • Secure SSL encrypted checkout
  • Fast, tracked shipping
  • Easy returns & support
Shipping & Delivery

Flat-rate shipping $17.95 + GST (metro and standard zones). Excludes remote/regional/high-cost postcodes and certain items (DG, oversized, long-length, or bagged products 15 kg+). If your order includes any of these, we will contact you to arrange additional freight charges. Online purchases only.

Download Product Data

Download TDS Download Technical document
Description

The ART Australia Square Bermuda Megaflex is a tile-insert point drain designed to minimise the appearance of the waste in a tiled shower or bathroom floor. A tile cut to suit the recessed centre creates a discreet finish, while drainage passes around the tile insert into the waste.

Choose the correct outlet and trim

The 100 × 100 mm square Bermuda format is available in different drainage outlets and metal finishes. Select the correct pipe size and finish rather than choosing solely from the visible grate dimensions. Raw polished brass can change appearance over time, while coated and plated finishes need suitable cleaning care.

Why the Megaflex base matters

The system includes a Megaflex leak-control base designed for connection with a specified waterproofing detail, distinguishing it from ART's standard Bermuda fitting. Check the applicable outlet, tile thickness, floor build-up, strainer access and plumbing before installation. A tile-insert waste is not a complete waterproofing system and still requires properly designed floor falls and membrane junctions.

Uses & Benefits
100 × 100 mm Square Bermuda Megaflex floor waste with solid-brass top and adjustable ABS base. Available in multiple outlet sizes and finishes for tiled wet areas.
Limitations and Safety Info
Choose the outlet size and finish before installation. Polished Brass is a raw living finish and will patina over time.

100x100mm Square Bermuda Megaflex™ Physical Properties

100x100mm Square Bermuda Megaflex™ Physical Properties
Property Value
Product Type Square Bermuda Megaflex tile-insert waste
Nominal Face 100 × 100 mm square
Listing Outlet Size 50 mm (verify before extending to other sizes)
Grate Material Solid brass
Base ABS Megaflex
Included Components Protective cover; acoustic dampeners; stainless steel strainer
Tested Flow Rate (50 mm outlet) Up to 30 L/min with 5 mm head and fall ≥1:80
Manufacturer Reference 11205 family for 50 mm outlets
