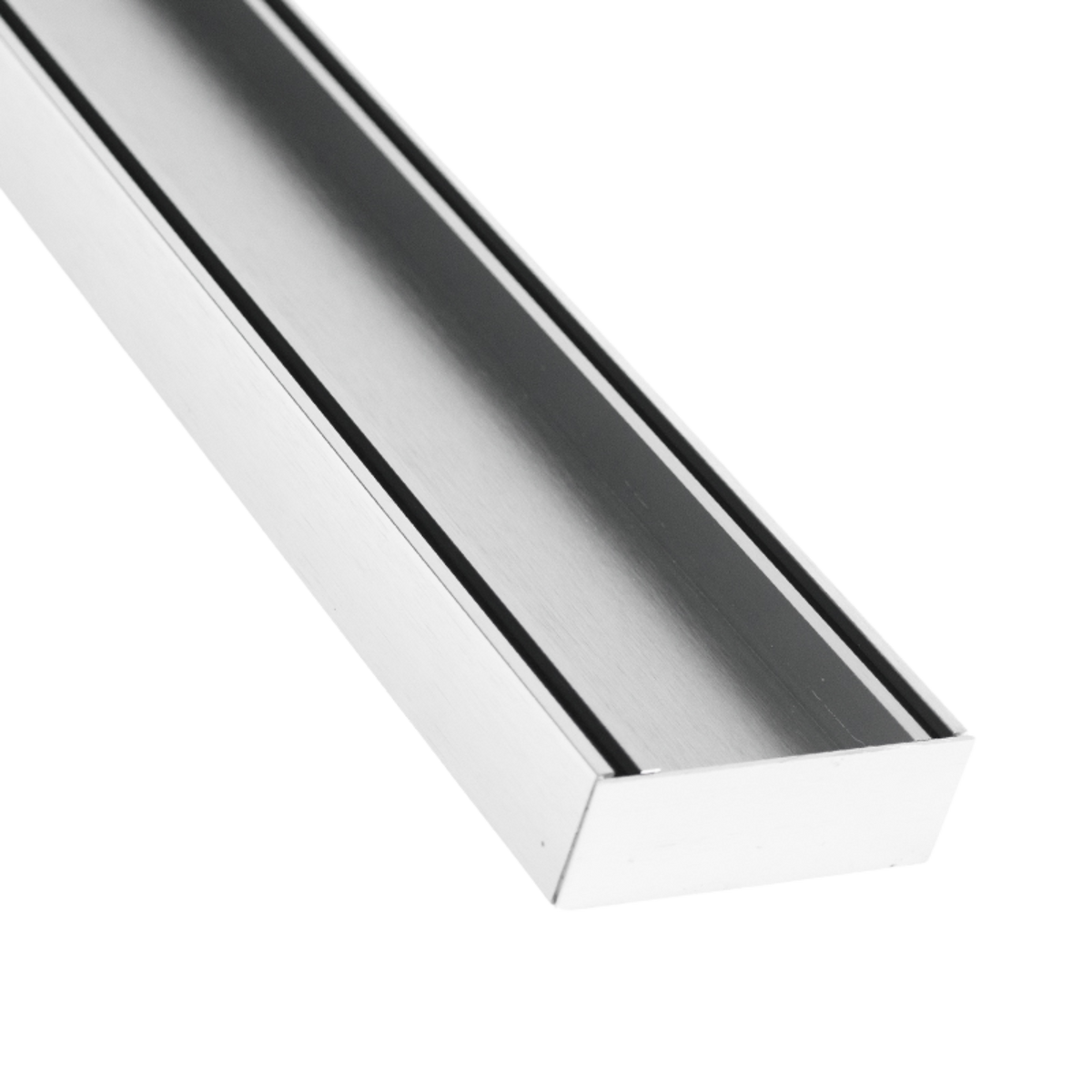

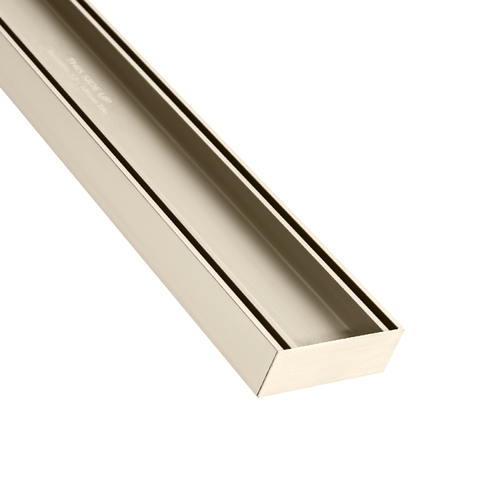

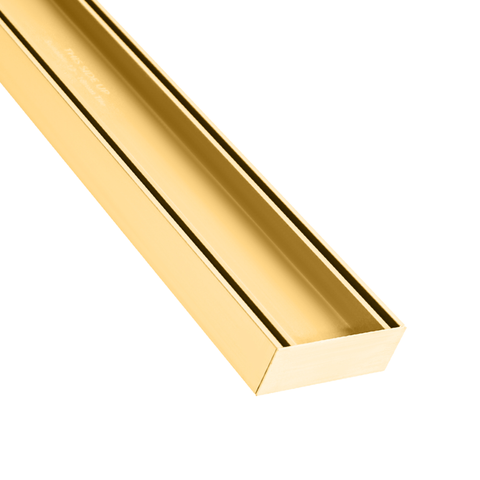

Lauxes Grates Tile Insert Plus Grate Kit is an anodised aluminium drainage system designed to maintain watertight integrity in high-exposure outdoor balconies and patios. This UV-stable kit features a Class B 10.2-ton load rating and an anti-water tracking design that prevents moisture from bypassing the channel and causing substrate delamination.
Engineered for thick stone up to 20mm, it simplifies surface preparation and membrane application by offering a customisable outlet position for a reliable, continuous seal.
Frequently asked questions
Can the Lauxes Tile Insert Plus Grate be cut onsite?
Yes, the anodised aluminium construction allows onsite cutting with a standard mitre saw. This ensures custom fitting and minimises material waste.
Does this grate system require fixed plumbing outlet positions?
No, the waste outlet can be positioned anywhere along the tray. This flexibility simplifies installation and avoids plumbing reconfigurations.
Is the grate suitable for outdoor use in coastal environments?
Yes, it is made from rustproof anodised aluminium and comes with a Lifetime Rustproof Warranty. This makes it suitable for salt air and harsh weather exposure.
Can this grate be used with tiles thicker than 18mm?
No, this model supports tiles up to 18mm thick. For thicker tiles, consider other Lauxes models designed for greater depths.
How is the grate cleaned after installation?
The tile insert tray rolls out easily, allowing for quick debris removal or inspection. No special tools are required for routine cleaning.
Applications and benefits
| Application | Key benefit | Primary trades |
|---|---|---|
| Balcony and patio drainage | Maintains tile finish continuity while providing UV stable and corrosion-resistant drainage. | Tiler, landscaper, builder |
| Commercial shower and wet areas | Provides high-capacity drainage with a 10.3-tonne load rating for heavy traffic. | Builder, plumber, tiler |
| Pool surrounds and external wet zones | Offers UV stability and resistance to salt air corrosion, backed by a Lifetime Rustproof Warranty. | Pool builder, landscaper |
| Interior wet rooms and accessible bathrooms | Delivers a seamless tiled finish with flexible waste positioning, supporting National Construction Code requirements. | Tiler, builder |
How to apply Lauxes Grates Tile Insert Plus Grate Kit:
- Measure your desired installation space and mark where the grate will be placed.
- Cut the grate onsite using a mitre or drop saw to fit the space as needed.
- Position the bottom tray on the substrate, adjusting waste outlet to desired location.
- Apply adhesive or silicone to secure the tray, ensuring it is level with tile surface.
- Install tiles into the removable tray insert, maintaining grout line alignment.
- Roll out the tray insert for cleaning or tile adjustments as needed post-installation.
Product limitations
- Not for: Tiles thicker than 18mm. Use alternative Lauxes models for larger profiles.
- Not for: High-acid industrial environments. Aluminium may corrode under extreme chemical exposure.
Safety and handling
Personal protective equipment
Wear safety glasses and gloves when cutting aluminium or handling edges.
Ventilation
Use in well-ventilated areas, particularly when applying adhesives or sealants during installation.
First aid
- Eyes: Rinse immediately with water if any adhesive or debris enters eyes. Seek medical attention if irritation persists.
Storage and disposal
Store in original packaging to protect surfaces. Avoid dragging on abrasive surfaces to prevent scratches. Dispose of cut-offs according to local waste regulations for aluminium.
Lauxes Grates Tile Insert Plus Grate Kit can be used on the following substrates:
- anodised aluminium – compatible with all standard tile adhesives used in construction
- tile – supports porcelain, ceramic, and natural stone tiles up to 18mm thick
- concrete – suitable for in-slab or floor set installations
- stone – works well in architectural finishes using natural or engineered stone
- porcelain – allows seamless insert flush to high-end tiles
Product documents
Lauxes Grates Tile Insert Plus Grate Kit Physical Properties
| Property | Value |
|---|---|
| Material | Anodised Aluminium |
| Colour | Silk Silver, Midnight Black |
| Dimensions | 5600 x 100 x 35 mm |
| Tile Compatibility | Up to 18mm thick |
| Load Rating | 10.3 tonnes |
| UV Resistance | UV Stable |
| Fade Warranty | 25 years |
| Rust Resistance | Lifetime Rustproof Warranty |
| Extendability | With joiners |
| Application Area | Indoor and Outdoor |
| Waste Outlet Position | Customisable along the tray |
| Cleaning Method | Roll-out system |
| Available Lengths | 1m, 5.6m |
| Cutting Capability | Onsite with mitre saw |
