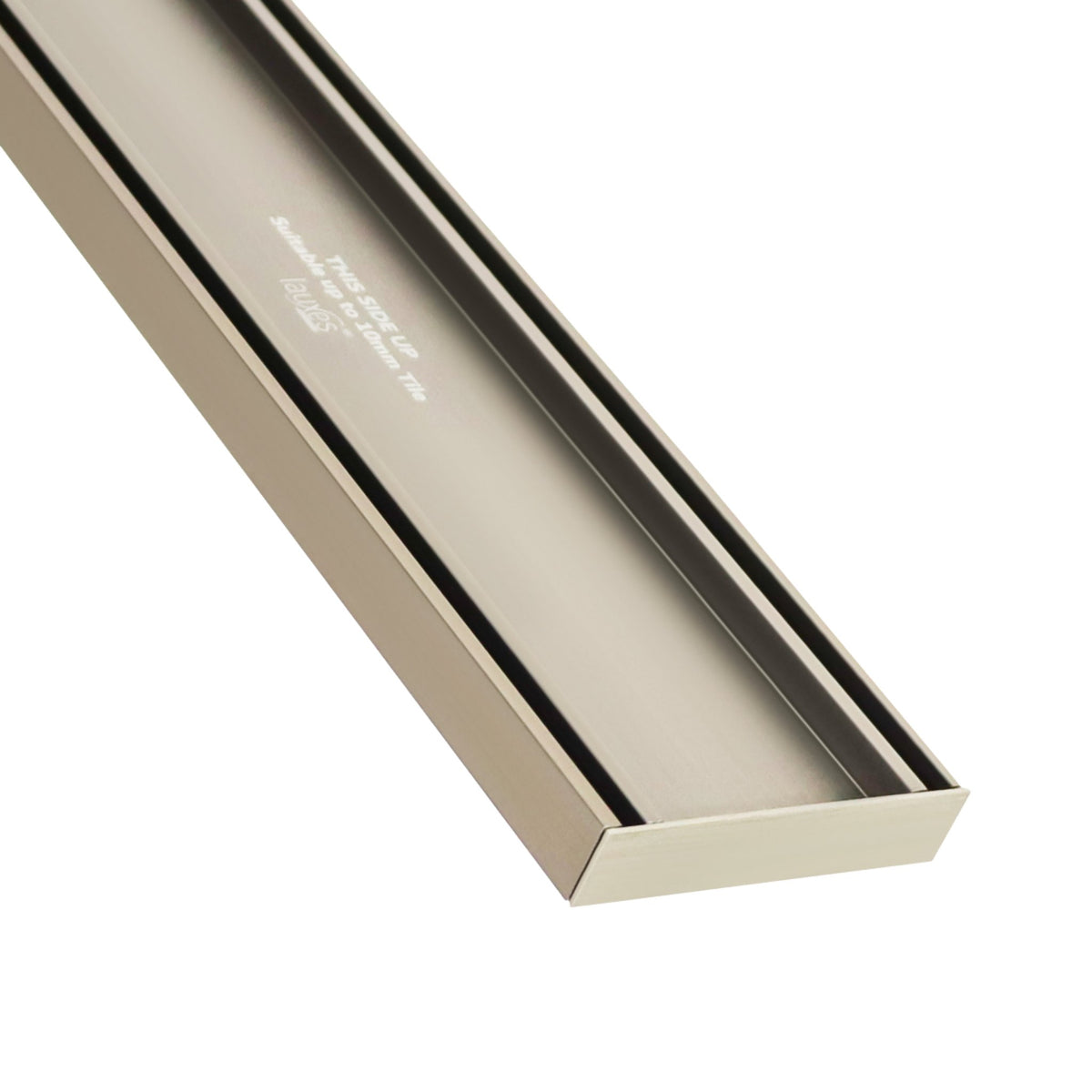

A 26mm deep tile insert drain kit for renovating over existing slabs and shallow screeds. The tray takes tiles up to 11mm, so the drain reads as a line in the floor finish, and the grate top rolls out for cleaning without tools.
The waste outlet can be positioned anywhere along the tray, so the existing plumbing does not dictate where the drain goes. UV-stable anodised aluminium with a lifetime rustproof guarantee, and the anti-tracking underside keeps water in the channel instead of under the tiles.
Frequently Asked Questions About Lauxes Grate Slimline Tile Insert 26 Grate Kit - 5600mm
Q: Can I cut the Lauxes Tile Insert Grate to fit a custom shower or balcony length?
A: Yes, the grate can be easily trimmed onsite using standard tools such as a mitre saw or multi-tool with a metal blade. This allows exact customisation to suit unique project dimensions with minimal waste.
Q: Will the grate rust or corrode over time in coastal areas?
A: No, the grate is constructed from anodised aluminium with a rustproof finish and is backed by a lifetime rustproof warranty. It’s suitable for use in salt-laden air environments and marine applications.
Q: How do I clean the grate once it's installed?
A: The Lauxes grate features an easy roll-out design. Simply lift or slide out the insert section for full access to the drainage channel, allowing quick and tool-free cleaning.
Q: Can this grate be used with all types of waterproofing membranes?
A: Yes, the anodised aluminium base tray is compatible with most common waterproofing systems. Always consult your membrane supplier for specific sealing requirements around the perimeter.
Q: Is it suitable for outdoor use in full sun exposure?
A: Absolutely. The UV-stabilised colour finish protects against fading and damage, even in harsh Australian sun conditions. It carries a 25-year fade warranty for peace of mind.
Lauxes Grates Slimline Tile Insert 26 Grate Kit can be used on the following substrates:
- tiles (ceramic, porcelain, natural stone)
- concrete screeds and preformed shower bases
- waterproofing membranes
- adhesive beds and thinset mortars
- grout and joint fillers
Lauxes Grates Slimline Tile Insert 26 Grate Kit Physical Properties
| Property | Value |
|---|---|
| Measurements | 5600 mm x 100 mm x 26 mm (220.47 in x 3.94 in x 1.02 in) |
| Tile Thickness Compatibility | Up to 11 mm (0.43 in) |
| Colours | Silk Silver, Matte Gold, Midnight Black, Brushed Nickel |
| UV Stability | Yes |
| Rustproof Warranty | Lifetime |
| Fade Warranty | 25 Years |
| Material Joinability | Extendable using Lauxes joiners |
| Cleaning System | Easy roll out system |
| Water Tracking | None |
| Cutting Capability | Can be cut onsite |
| Outlet Placement | Waste outlet can be positioned anywhere along the bottom tray |
| Coverage Rate | Supplied in standard 1 metre and 5.6 metre lengths; extendable |
