Lauxes Grates NXT 21 combines a low 21mm profile with the easy-clean roll-out design of the NXT range. At 100mm wide, it is a versatile anodised aluminium linear drain for bathrooms, balconies, pool surrounds, courtyards and other indoor or outdoor areas.
The anti-water-tracking profile helps direct water through the channel, while on-site cutting and flexible waste outlet positioning make it easier to work around the existing plumbing layout.
Key features
- 100mm wide x 21mm deep profile
- Anodised aluminium construction
- Anti-water-tracking design and removable roll-out grate
- 40mm, 50mm, 72mm and 80mm waste outlet options
- Cut to length on site
- Suitable for indoor and outdoor use
- Trafficable up to 10.2 tonnes
- Lifetime rustproof warranty and UV-stable finish
- WaterMark-certified for approved Australian installations
Frequently Asked Questions About NeXT Generation 21 (NXT21)
Q: Can the NXT21 be used on balconies or outdoor patios?
A: Yes, it’s fully UV stable and rustproof, making it ideal for any outdoor applications including balconies, alfresco areas, and even pool surrounds.
Q: How do I clean the grate?
A: The roll-out feature allows for easy access to internal drainage. Simply roll the grate up and clean with a soft brush and hose.
Q: Can it be cut on-site?
A: Absolutely. It is designed for easy onsite cutting using a drop saw or hacksaw. Always deburr edges after cutting.
Q: Will it rust over time in coastal areas?
A: No. It carries a Lifetime Rustproof Warranty and is manufactured from anodised aluminium, ideal for salt air environments.
Use NeXT Generation 21 (NXT21) for:
- Indoor linear shower drains
- Outdoor patios and pool edges
- Balcony drainage
- Commercial bathrooms and wet zones
Why Use NeXT Generation 21 (NXT21):
- Rust-free for life – ideal for high-moisture zones
- 25-year fade warranty – great for exposed installations
- Faster onsite adjustments – cut, connect and drain with ease
How to apply NeXT Generation 21 (NXT21):
- Measure and cut the grate to length using a drop saw. Deburr edges for safety and aesthetics.
- Set the tray in place over waterproofed substrate. Ensure even support along the length.
- Position waste outlet anywhere along the tray and connect to compatible drainage.
- Install grate cover by rolling in place. Adjust finish height to align with tile or floor level.
- Clean with soft cloth after installation to remove residue or debris.
NeXT Generation 21 (NXT21) limitations:
- Minimum installation depth is 21mm – unsuitable for ultra-slimline floor designs
- May require tray packing for uneven screeds – always check with a level before installation
Safety precautions when using NeXT Generation 21 (NXT21):
- Personal Protective Equipment: Gloves, safety glasses when cutting aluminium
- Ventilation: Not required for product, but adhesive use may require ventilation
- Handling: Handle with care when cut to avoid sharp aluminium edges
- First Aid: Rinse eyes immediately if debris enters during cutting; seek medical attention if needed
NeXT Generation 21 (NXT21) can be used on the following substrates:
- concrete – for recessed tray installation in wet areas
- tile – suitable for flush finish in indoor bathrooms
- timber – can be mounted with waterproofing underlay
- pavers – ideal for outdoor or landscaping applications
- waterproofing membranes – compatible with bonded waterproofing systems
Lauxes Grates NXT 21 Linear Drain Kit Physical Properties
| Property | Value |
|---|---|
| Material | Anodised Aluminium |
| Finish | UV Stable Anodised |
| Cleaning Access | Easy roll-out feature for cleaning and maintenance |
| Cutting Capability | Easily cut onsite to desired length |
| Warranty | 25-Year UV Warranty, Lifetime Rustproof Warranty |
| Product Name | NeXT Generation 21 (NXT21) |
| Dimensions | 5600 mm × 100 mm × 21 mm |

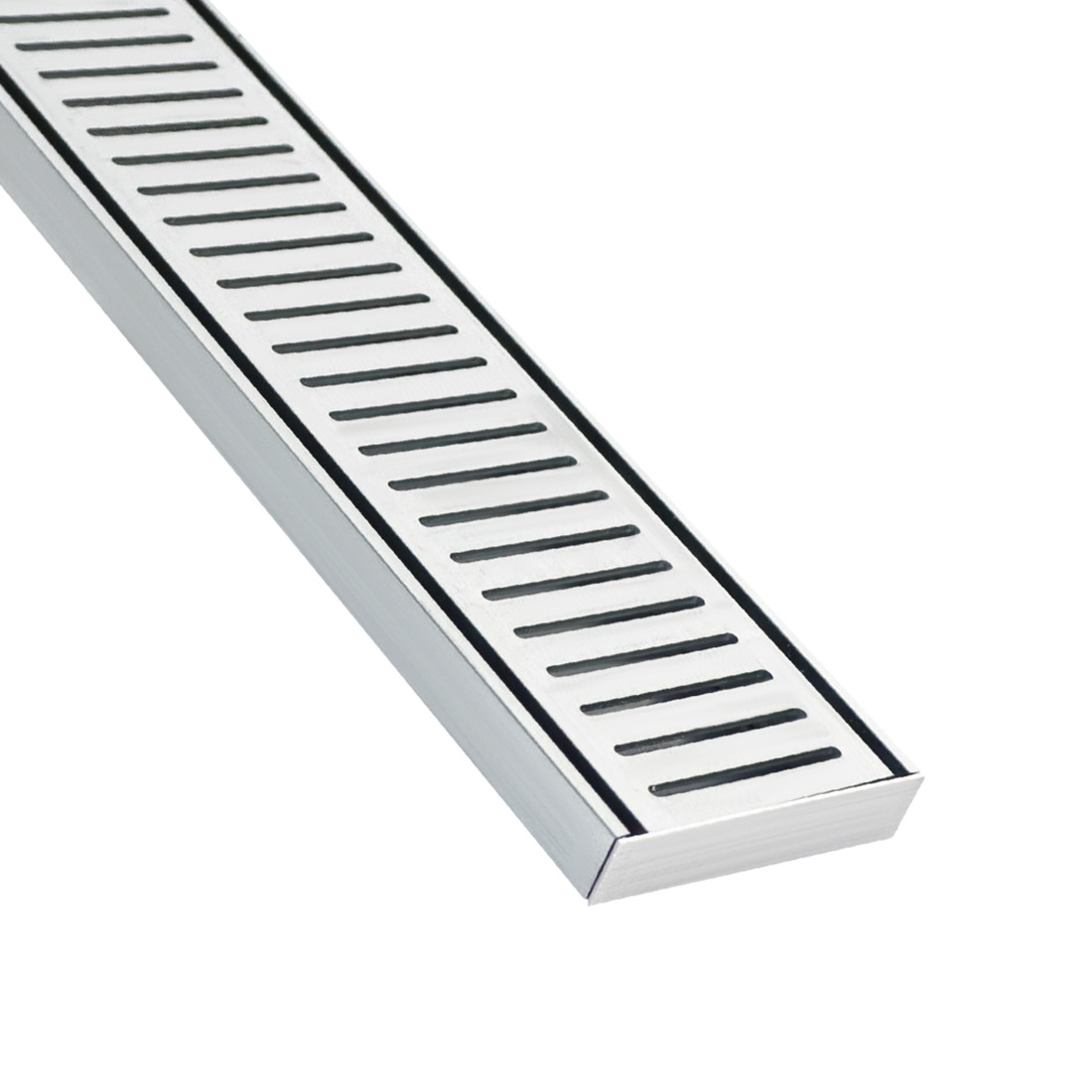

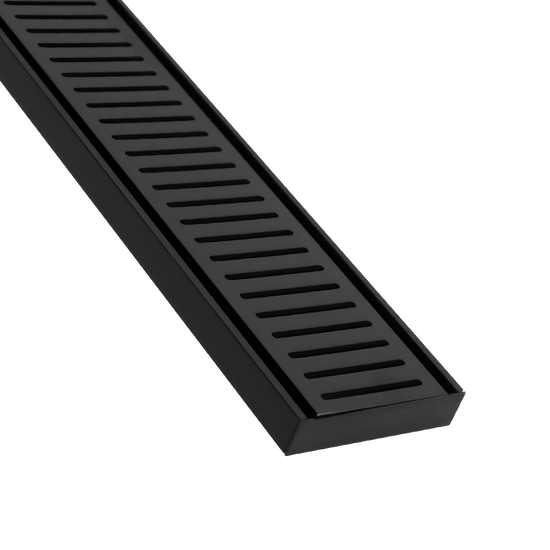

| Available Colours | Silk Silver, Matte Gold, Midnight Black, Brushed Nickel |
| Length Options | 1m, 3m and 5.6m, Custom lengths on request |
| Grate Depth | 21 mm |
| Grate Width | 100 mm |
| Joiner Compatibility | Compatible with Lauxes Joiners |
| Outlet Flexibility | Waste outlet can be positioned anywhere along the bottom tray |
| Application Suitability | Indoor, Outdoor |
| Tracking Prevention | Anti-tracking technology |
