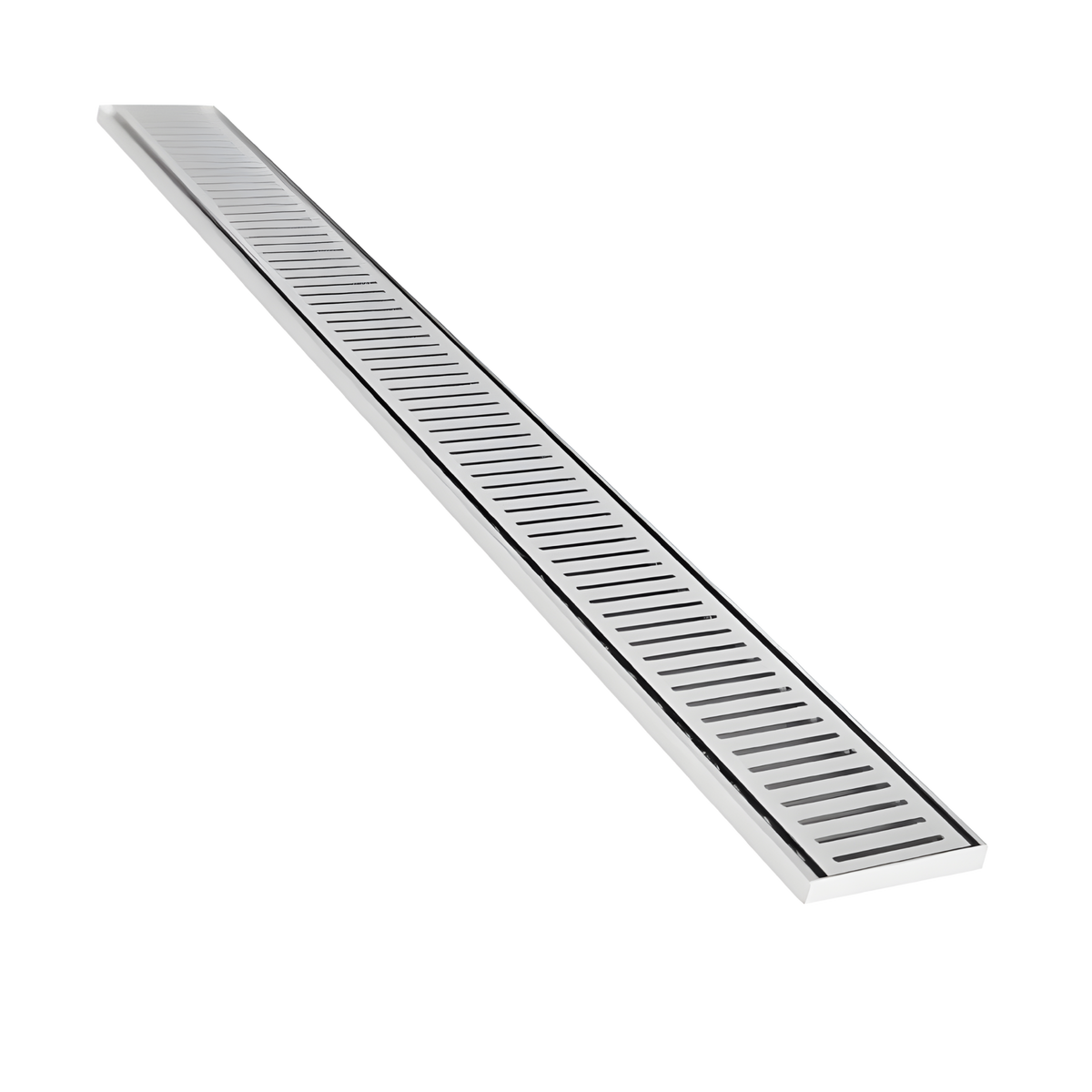

Lauxes Grates NeXT Generation NXT14 Linear Drain Kit is an anodised aluminium drainage system engineered to maintain watertight integrity in high-moisture residential and commercial environments.
This 14mm low-profile solution features integrated anti-tracking technology specifically designed to prevent sub-tile water migration and capillary tracking, which often leads to membrane failure and structural rot in wet zones.
The system offers significant workflow efficiency for the waterproofing contractor through its customizable outlet positioning, allowing the waste to be placed anywhere along the tray to align with existing plumbing. Its construction provides permanent resistance to oxidation and salt-air degradation, backed by a lifetime rustproof warranty and a 25-year UV-stable finish for coastal or poolside applications.
For a flush-floor finish, ensure the recess is at least 14mm deep and deburr all edges after onsite cutting to maintain a secure grate seating and prevent safety hazards.
Frequently asked questions
Can the NXT14 be used in outdoor areas?
Yes, the NXT14 is fully UV stable and rustproof due to its anodised aluminium construction. It is suitable for balconies, alfresco areas, and pool surrounds where exposure is a factor.
How do I clean the NXT14 linear drain?
The grate features a roll-out design, allowing easy access to the internal drainage channel. Simply roll it up, then clean the channel with a soft brush and hose.
Is the NXT14 suitable for onsite cutting?
Yes, it is designed for straightforward onsite cutting using a drop saw or hacksaw. Always deburr the edges after cutting to ensure a clean finish and safe handling.
Will the NXT14 rust or fade in coastal environments?
No, the NXT14 is manufactured from anodised aluminium with a Lifetime Rustproof Warranty. Its 25-Year UV Warranty also ensures it withstands salt air and sun exposure without fading.
What is the minimum installation depth for this drain?
The NXT14 requires a minimum installation depth of 14mm. This makes it unsuitable for ultra-slimline floor designs that cannot accommodate this depth.
Applications and benefits
| Application | Key benefit | Primary trades |
|---|---|---|
| Indoor linear shower drains | Rust-free performance and easy cleaning with roll-out grate access. The anti-tracking technology maintains a clean finish. | Tilers, Plumbers |
| Outdoor patios and pool surrounds | 25-Year UV Warranty and anodised aluminium construction prevents fading and rust in exposed conditions. | Landscapers, Builders |
| Balcony drainage | Durable, rustproof design with integrated anti-tracking for reliable long-term water management. | Builders, Waterproofers |
| Commercial bathrooms and wet zones | Lifetime Rustproof Warranty ensures longevity and reduces maintenance in high-traffic commercial environments. | Plumbers, Commercial Builders |
How to apply NeXT Generation 14 (NXT14):
- Measure and cut the grate to length using a drop saw. Deburr edges for safety and aesthetics.
- Set the tray in place over waterproofed substrate. Ensure even support along the length.
- Position waste outlet anywhere along the tray and connect to compatible drainage.
- Install grate cover by rolling in place. Adjust finish height to align with tile or floor level.
- Clean with soft cloth after installation to remove residue or debris.
Product limitations
- Minimum depth: Not for installations requiring less than a 14mm depth. The grate's profile requires this clearance.
- Substrate levelling: Uneven screeds may require tray packing to ensure a level installation. Always check with a level before final placement.
Safety and handling
Personal protective equipment
Wear gloves and safety glasses when cutting aluminium sections of the grate.
Ventilation
No specific ventilation is required for the grate itself. However, ensure adequate ventilation when using adhesives, sealants, or other associated products as per their individual safety data sheets.
First aid
- Eyes: If debris enters eyes during cutting, rinse immediately with water. Seek medical attention if irritation persists.
Handling
Exercise caution when handling cut aluminium edges as they may be sharp. Deburr all cut surfaces before final installation.
Substrate guide
Correct substrate preparation ensures reliable performance and prevents callbacks. The NXT14 is compatible with common wet area and outdoor finishes.
Concrete
Surface prep: Install into a recessed tray application in wet areas, ensuring proper fall to the drain.
Primer: Not required for the drain itself, but concrete prep for waterproofing systems should follow membrane manufacturer guidelines.
Tile
Surface prep: Ensure the bedding and adhesive allow for a flush finish in indoor bathrooms and wet zones.
Primer: Not required for the drain.
Timber
Surface prep: Mount the drain with a suitable waterproofing underlay to manage water flow effectively.
Primer: Not required for the drain.
Pavers
Surface prep: Install directly as part of outdoor or landscaping applications, maintaining appropriate falls.
Primer: Not required for the drain.
Waterproofing Membranes
Surface prep: The NXT14 is compatible with bonded waterproofing systems. Ensure correct integration with the membrane according to the membrane manufacturer's specifications.
Primer: Not required for the drain.
Lauxes Grates NeXT Generation NXT14 Linear Drain Kit Physical Properties
| Property | Value |
|---|---|
| Product Name | NeXT Generation 14 (NXT14) |
| Dimensions | 5600mm x 100mm x 14mm |
| Material | Anodised Aluminium |
| Available Colours | Silk Silver, Matte Gold, Midnight Black, Brushed Nickel |
| Finish | UV Stable Anodised |
| Length Options | 1m, 3m, 5.6m, Custom lengths on request |
| Grate Depth | 14mm |
| Grate Width | 100mm |
| Warranty | 25-Year UV Warranty, Lifetime Rustproof Warranty |
| Cutting Capability | Easily cut onsite to desired length |
| Joiner Compatibility | Lauxes Joiners |
| Outlet Flexibility | Waste outlet can be positioned anywhere along the bottom tray |
| Cleaning Access | Easy roll-out feature |
| Application Suitability | Indoor, Outdoor |
| Tracking Prevention | Anti-tracking technology |
