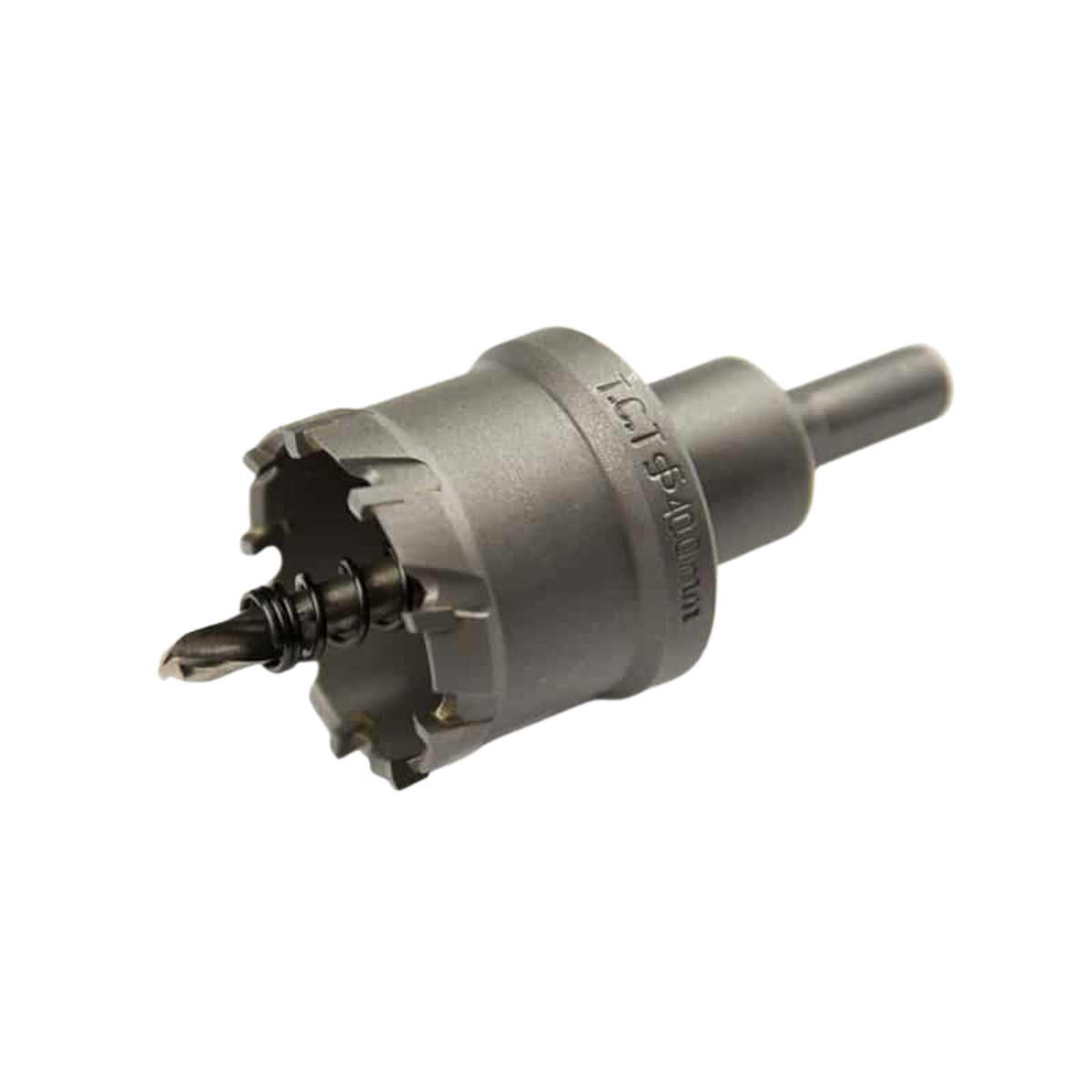

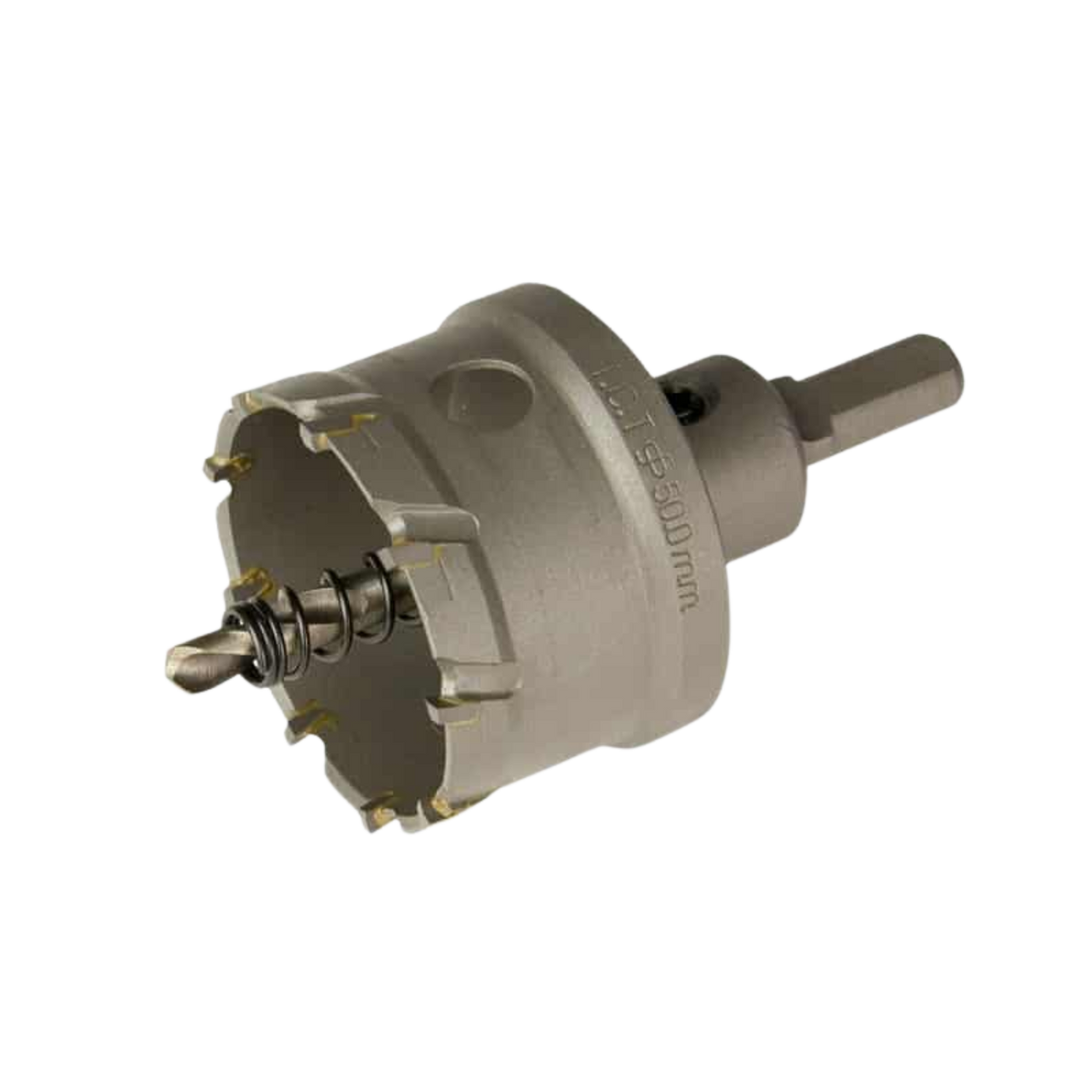

Lauxes Grates TCT Hole Saws For Pop Waste Outlet are specialized cutting tools engineered for high-precision installs in aluminium linear drainage systems. These units feature Tungsten Carbide Tipped (TCT) teeth that maintain sharpness 10 times longer than standard bi-metal alternatives while preventing thermal warping of the substrate.
The integrated arbor and pilot drill design removes the need for additional components, allowing for immediate mechanical use in residential bathroom and balcony fit-outs. To ensure professional results, these hole saws incorporate a dedicated escape angle that efficiently clears metal chips to prevent clogging and overheating during high-volume drilling.
The tool sizing is specifically calibrated to match Lauxes grate dimensions, significantly reducing the risk of outlet misalignment and subsequent seal failure. Operators should maintain material temperatures between 5°C and 40°C to avoid binding and ensure a clean, burr-free finish across 40mm, 50mm, 72mm, and 80mm hole requirements.
Frequently asked questions
Can these TCT hole saws cut stainless steel?
No, these hole saws are specifically designed for cutting aluminium, particularly Lauxes grates. They are not recommended for harder metals like stainless steel; use a dedicated bi-metal or specialised metal-cutting saw for those materials.
Is a separate arbor or pilot drill required?
No, each Lauxes TCT Hole Saw is a complete unit, including an integrated arbor and pilot drill. This design saves setup time and ensures compatibility with standard power drills on site.
How many cuts can one saw typically make?
With correct application, these TCT hole saws can offer up to 10 times the lifespan of standard bi-metal saws. In aluminium, they deliver dozens to over 100 clean cuts depending on material thickness and operator technique.
What is the recommended drill speed?
Use a medium drill speed for optimal performance. High speeds can generate excessive heat, while speeds too low may cause chattering. Maintain consistent pressure and regularly clear chips to ensure cutting efficiency.
Applications and benefits
| Application | Key benefit | Primary trades |
|---|---|---|
| Drilling pop waste outlets in Lauxes aluminium grates | Delivers precise, burr-free holes preventing alignment errors and ensuring a clean finish for waterproofing. | Plumbers, Tilers |
| General hole cutting in aluminium drainage trays | Fast, controlled cutting with minimal heat buildup and efficient chip discharge, reducing tool wear and speeding up work. | Builders, General Contractors |
| Retrofit or modification of existing aluminium drainage systems | Outlasts standard bi-metal saws by up to 10 times in aluminium, offering reliability for demanding on-site adjustments. | Renovators, Maintenance Workers |
How to apply Lauxes Grates TCT Hole Saws For Pop Waste Outlet:
- Select the correct hole saw size (40mm, 50mm, 72mm, or 80mm) to match the Lauxes grate waste outlet being installed.
- Secure the aluminium grate or panel to prevent movement during drilling. Use clamps where appropriate.
- Attach the TCT hole saw to a standard power drill (no additional arbor required). Ensure drill is at medium speed.
- Apply steady pressure and allow the saw to cut without forcing it. Let the escape angle discharge chips naturally.
- Pause if needed to clear debris from the saw teeth. Clean edges as required post-cut using a deburring tool.
Product limitations
- Not for: Stainless steel, hardened steel, or masonry. These hole saws are optimised for aluminium only. Using them on unsuitable materials will damage the saw and may damage the work piece.
- Compatibility: Verify chuck compatibility for specialty drill types. Adapters may be required for non-standard chucks.
- Use technique: Improper use, including high-speed drilling or excessive pressure, will shorten tool life and can damage the material being cut.
Safety and handling
Personal protective equipment
Always wear safety goggles, gloves, and hearing protection when operating power tools with these hole saws.
Ventilation
Work in a well-ventilated area to minimise inhalation of metal dust generated when cutting aluminium.
First aid
- Cuts: Apply antiseptic to minor cuts. Seek medical attention immediately for deeper wounds.
- Burns: Treat burns from overheated metal promptly. Seek medical advice if burns are severe.
Handling
Handle the hole saws by the body, avoiding direct contact with the teeth. Exercise caution around recently cut material, as it may be hot.
Substrate guide
Proper substrate preparation and selection are critical for effective tool performance and a clean finish.
Aluminium
Surface prep: Ensure the aluminium surface is clean and free from debris or obstructions at the cutting point. Secure the material firmly to prevent movement during drilling.
Primer: Not required. This tool is designed for direct cutting into aluminium substrates.
Lauxes Grates TCT Hole Saws For Pop Waste Outlet Physical Properties
| Property | Value |
|---|---|
| Product Type | Tungsten Carbide Tipped Hole Saw |
| Material | Tungsten Carbide, Steel |
| Sizes Available | 40mm, 50mm, 72mm, 80mm |
| Cutting Application | Aluminium |
| Use Case | Construction, Installation, DIY |
| Tooth Design | Tungsten Carbide Tipped (TCT) |
| Cutting Performance | Fast, Clean, Controlled Cutting |
| Durability | Up to 10x Longer Life Than Standard Bi-Metal Hole Saws |
| Heat Management | Minimal Heat Build Up |
| Shaving Removal | Quick Discharge Escape Angle |
| Assembly | Complete Unit With Arbor and Pilot Drill Included |
