The Fatranyl PVC coated termination angles come in various different dimensions depending on the purpose and application of the Fatra PVC membrane system. Fatranyl PVC coated angles can also be fabricated to any site specific dimensions upon request.
Diagram | Description |
a (mm) |
b (mm) |
c (mm) |
![]() |

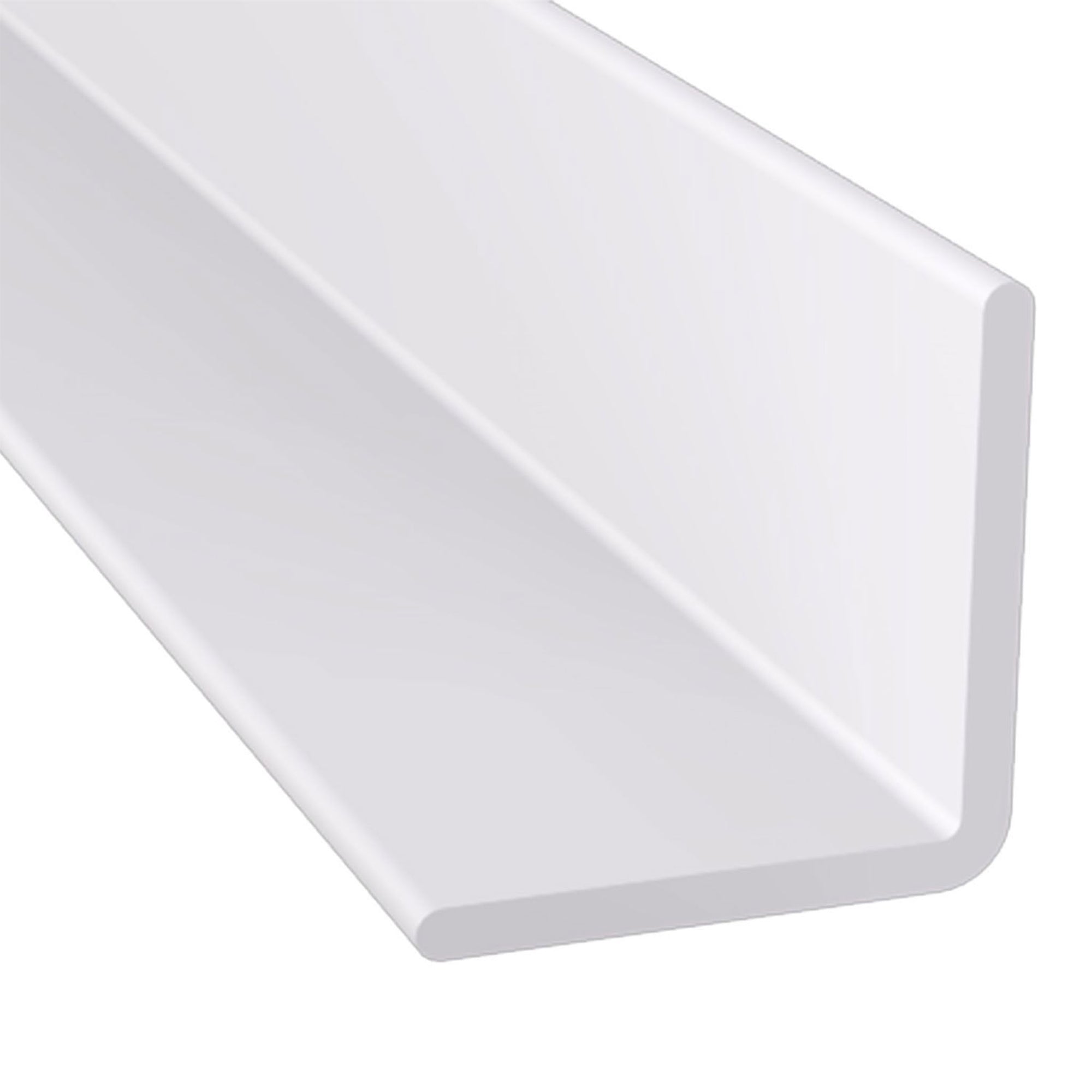

F1 PVC Angle Fatranyl 40mm x 40mm Internally Coated PVC Peel Stop Metal |
40 | 40 | 2 |
![]() |
F2 PVC Angle Fatranyl 50mm x 15mm Internally Coated PVC Peel Stop Metal |
15 | 50 | 2 |
![]() |
F3 PVC Angle Fatranyl 40mm x 40mm Externally Coated PVC Peel Stop Metal |
40 | 40 | 2 |
![]() |
F4 PVC Angle Fatranyl 50mm PVC Coated Flat Bar |
50 | 2 | |
![]() |
F5 PVC Angle Fatranyl 50mm x 15mm PVC Coated Chase Termination Metal |
15 | 50 | 2 |
![]() |
F6 PVC Angle Fatranyl 50mm x 20mm K-Flashing PVC Coated Metal |
20 | 50 | 2 |
![]() |
F7 PVC Angle Fatranyl 50mm x 50mm PVC Crush & Fold Metal |
50 | 50 | 2 |
