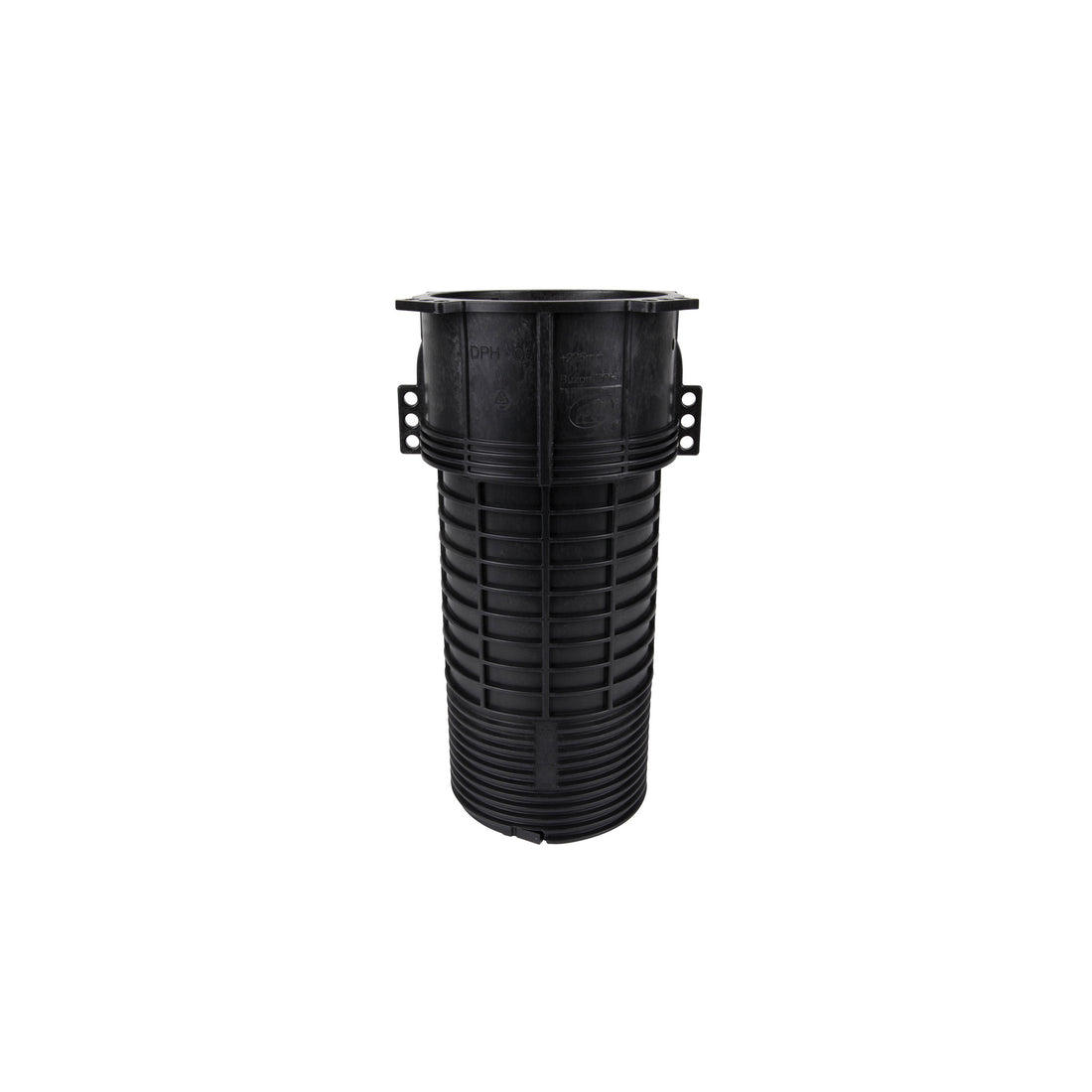

Buzon DPH-5 Coupler for Pedestal Extension is a modular height-adjustment component for professional raised access flooring in high-clearance rooftop and terrace environments. This heavy-duty coupler allows installers to bridge deep structural voids and MEP service runs by extending the pedestal range up to 1070mm while maintaining critical load-bearing stability for heavy stone pavers and decking.
Its precision-threaded design ensures fine-tuned height control on uneven substrates, preventing lateral instability and floor walking in installations requiring extreme vertical clearance.
Frequently asked questions
What does the DPH-5 Coupler do?
The DPH-5 Coupler extends the height of Buzon DPH-5 pedestals. It allows for modular vertical adjustment in raised flooring systems.
What is the maximum height I can achieve with this coupler?
When used with Buzon DPH-5 pedestals, the system can achieve heights up to 1070mm. This is suitable for deep voids or significant level changes.
Can I use this coupler with other pedestal brands?
No, the DPH-5 Coupler is specifically designed for use only with Buzon DPH-5 pedestals. Using it with other brands may compromise stability and system integrity.
Applications and benefits
| Application | Key benefit | Primary trades |
|---|---|---|
| Raised flooring on rooftops and terraces with deep voids | Achieves specific finished floor levels up to 1070mm with structural stability, allowing for services concealment. | Roofers, Landscapers, Waterproofers |
| Creating level surfaces over highly uneven ground | Provides a wider range of height adjustment, simplifying the process of creating a flat, stable platform for pavers or decking. | Landscapers, Builders |
| Elevated decking systems requiring significant height | Increases design flexibility for high-set decks, ensuring stable support for the timber or composite subframe. | Decking specialists, Builders |
Product limitations
- Not for: Use with any pedestal system other than the Buzon DPH-5 range. This coupler is an integral part of the DPH-5 system.
- Not for: Use as a standalone support. It must be integrated with a Buzon DPH-5 pedestal.
Safety and handling
Storage and disposal
Store in original packaging, away from direct sunlight and extreme temperatures. Dispose of in accordance with local regulations for plastic waste.
Buzon DPH-5 Coupler for Pedestal Extension Physical Properties
| Property | Value |
|---|---|
| Product Type | Pedestal Coupler |
| Compatibility | Buzon DPH-5 Pedestals |
| Function | Height Extension |
| Max System Height Achieved (with DPH-5 Pedestal) | 1070mm |
