Common problems this product solves: Provides a stable and adjustable base for raised flooring, enhancing drainage, insulation, and durability.

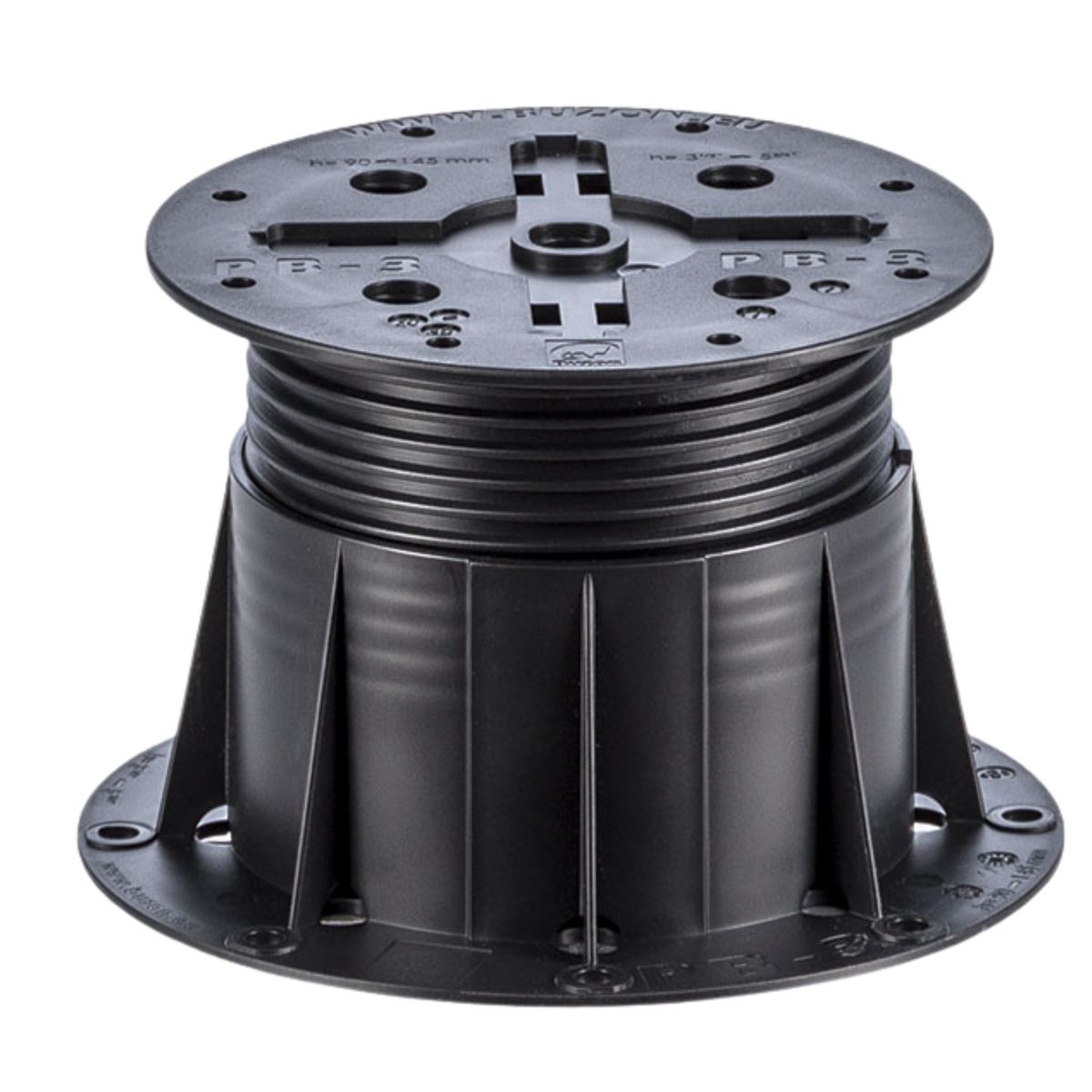

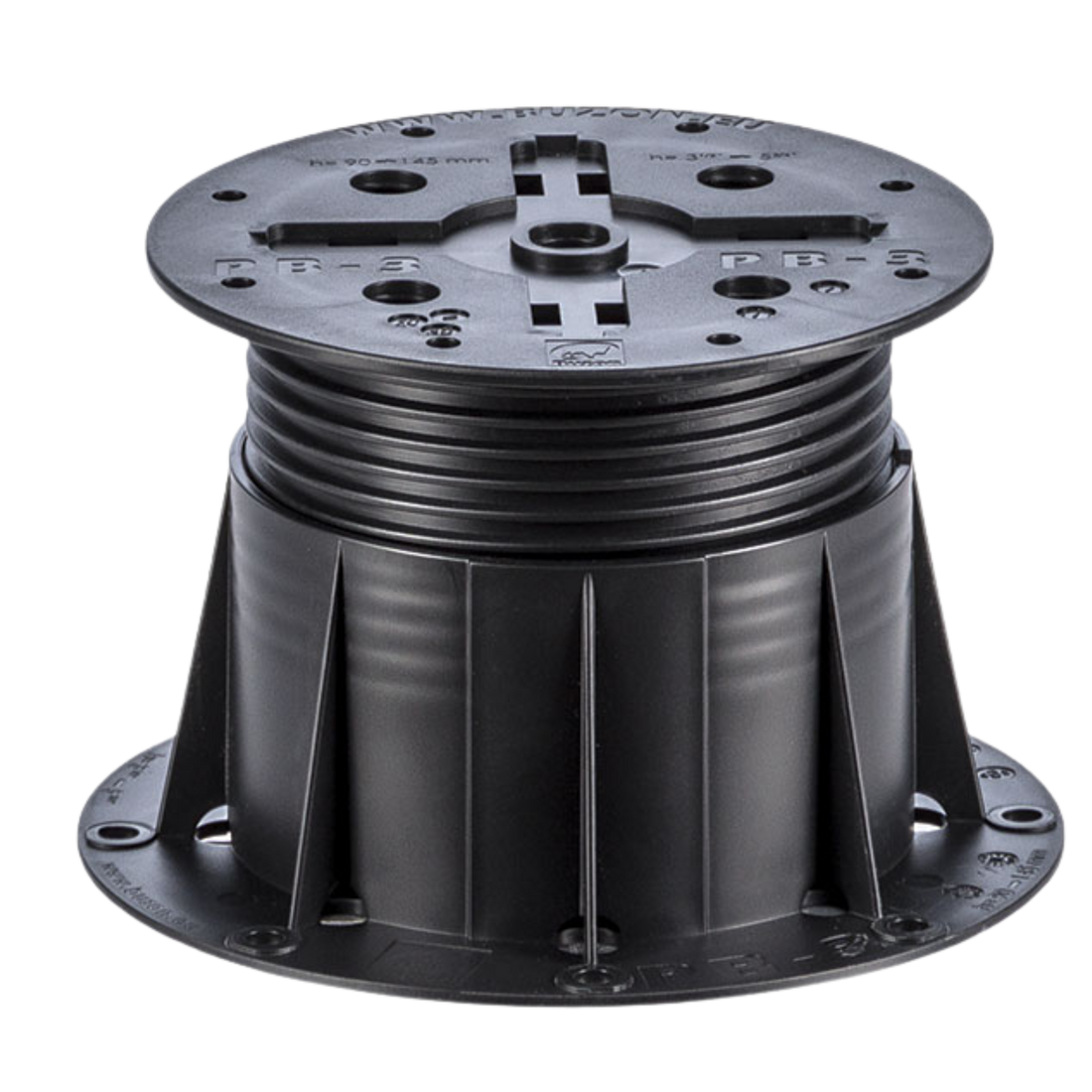

The PB-3 Adjustable Pedestal is a professional-grade support system designed for raised flooring applications in outdoor settings. Engineered with high-quality recycled copolymer polypropylene, it is weather-resistant, chemically durable, and can withstand extreme temperatures from -30°C to +80°C. With an adjustable height range of 90 mm to 145 mm, it offers precision leveling for a variety of outdoor surfaces, including stone pavers, composite decking, ceramic tiles, and metal grating panels. Ideal for use on terraces, pool decks, rooftops, and other landscape applications, the PB-3 ensures superior load-bearing capacity and ease of installation.
Key Features
- Height adjustable from 90 mm to 145 mm
- Made from high-grade recycled copolymer polypropylene
- Weather and UV resistant for long-term durability
- Compatible with a wide range of outdoor finishes
- Supports solid and stable substrates like concrete and waterproof membranes
- Lightweight yet capable of high load-bearing capacity
- Easy and precise installation for level flooring
Technical Overview
- Material: Copolymer Polypropylene (CPP), 80% recycled content
- Temperature Resistance: -30°C to +80°C
- Weight: 492 g
- Top Diameter: 170 mm (227 cm²)
- Base Diameter: 197 mm (305 cm²)
Trade Professional Information
- Required Tools: Standard leveling tools, rubber mallet, safety gloves
- Trade-Specific Tips: Ensure the substrate is stable and clean before installation to enhance load capacity
- Common Issues and Solutions: For sloped surfaces, use the U-PH5 slope corrector to adjust from 0° to 5°
Storage and Shelf Life
- Storage Requirements: Store in a dry and covered area
- Shelf Life Information: Indefinite shelf life under proper storage conditions
- Temperature Considerations: Avoid direct exposure to high heat for prolonged periods
Certifications
- Manufactured in compliance with European sustainability standards
- Made from EU-sourced recycled materials
- Tested for load-bearing capacity and durability
Frequently Asked Questions About PB-3 Adjustable Pedestal
-
Can the PB-3 be used for vehicle traffic? No, it is designed for pedestrian use only.
-
What is the maximum weight it can support? It can withstand up to 1583kg under optimal conditions.
-
Is it compatible with waterproof membranes? Yes, it can be installed on waterproofing systems.
