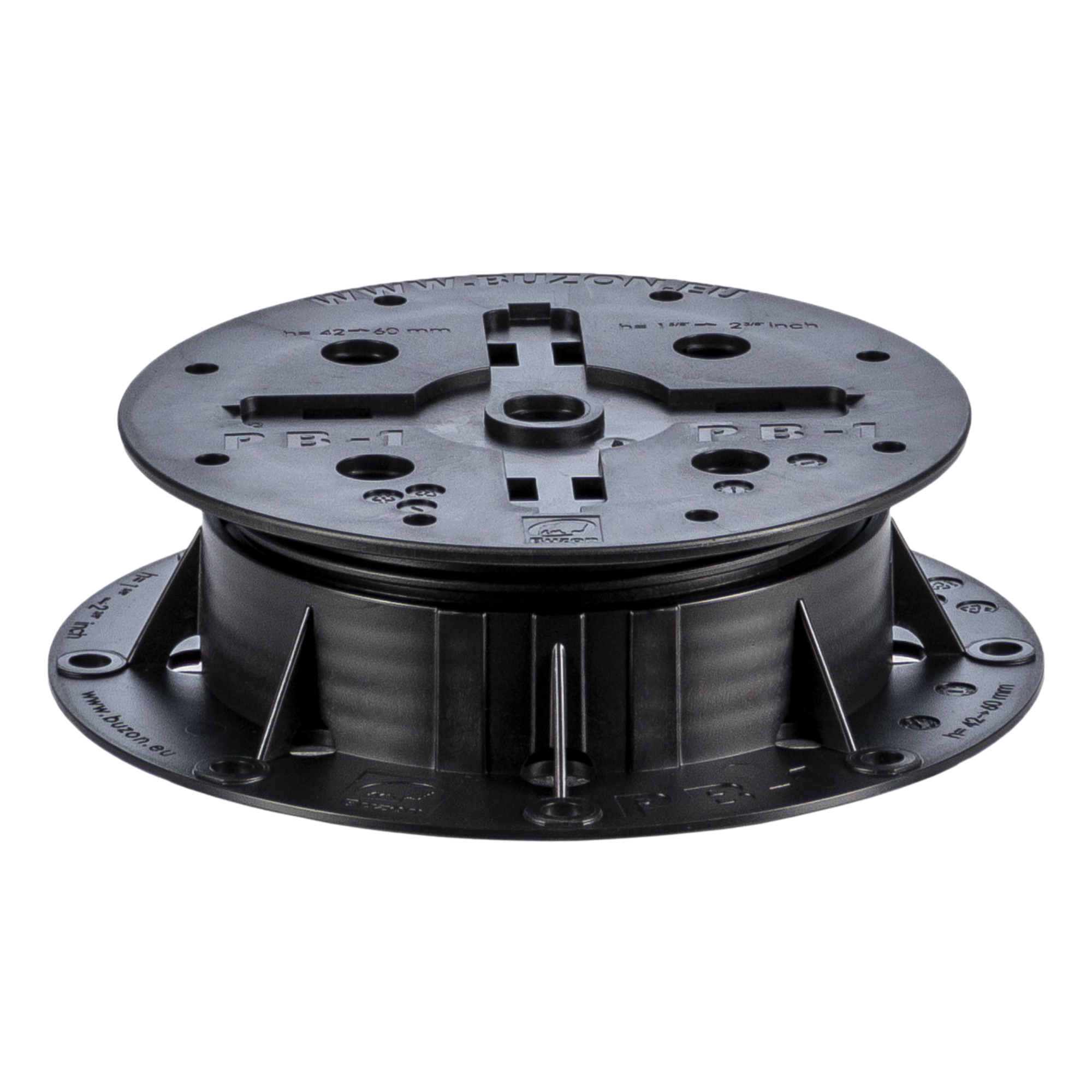

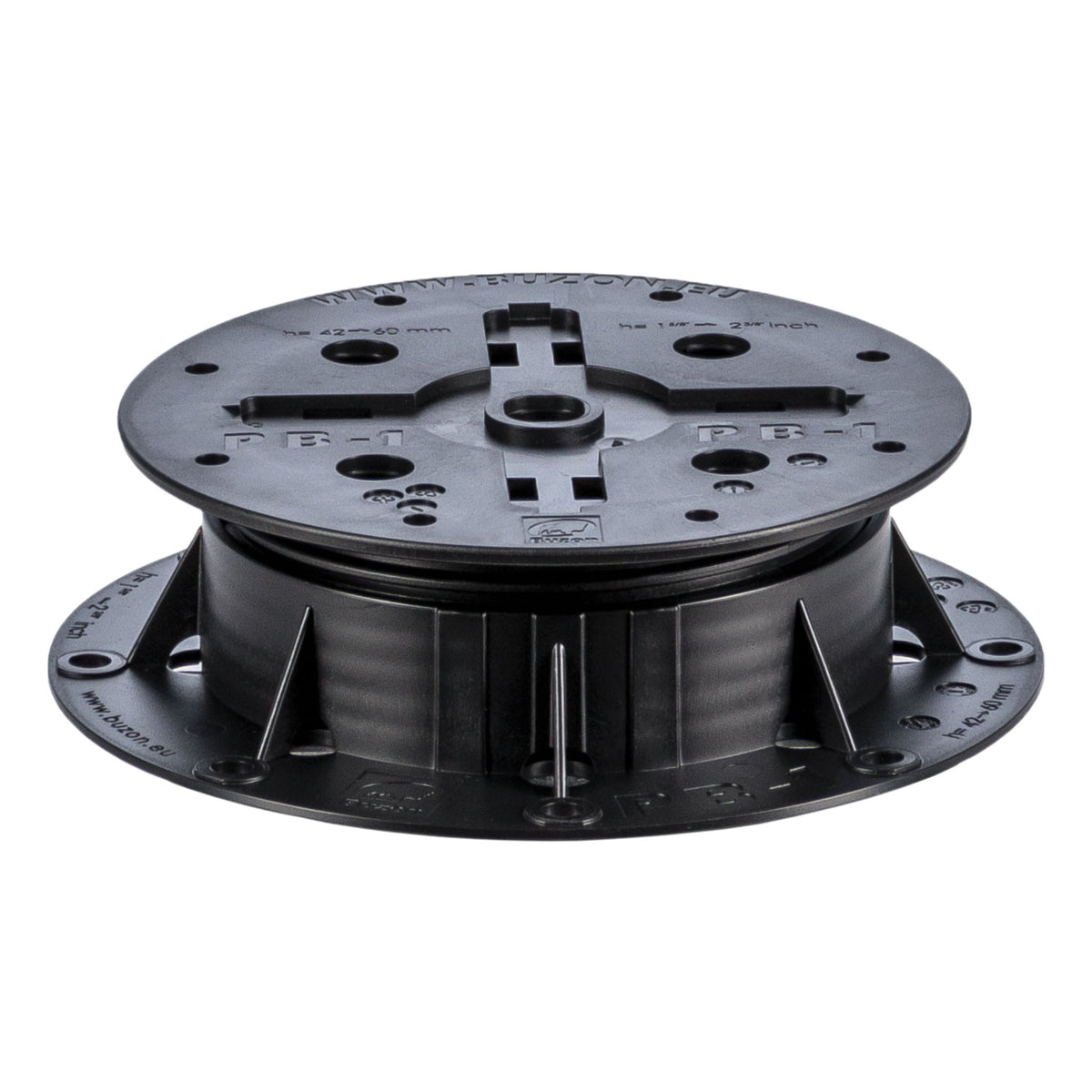

Buzon PB-1 Adjustable Pedestal (42-60mm)
Buzon PB-1 Adjustable Pedestal (42-60mm)
Buzon PB-1 Adjustable Pedestal (42-60mm)

Buzon PB-1 Adjustable Pedestal (42-60mm)

Buy in Bulk and Save!

Price Per Unit: $5.98

Price Per Box: $5.38

Buzon PB-1 Adjustable Pedestal (42-60mm) is a premium solution for raised flooring systems, designed for outdoor applications such as terraces, pool decks, and rooftops. Manufactured in Europe, it is made from high-quality copolymer polypropylene (CPP), ensuring durability, chemical resistance, and superior performance in extreme weather conditions (-30°C to +80°C). The PB-1 pedestal offers a height-adjustable range of 42mm to 60mm, with additional compatibility with the U-PH5 slope corrector for further leveling adjustments. Ideal for use with a variety of finishing materials including stone pavers, composite decking, and ceramic tiles. Built for trade professionals requiring reliable and adaptable flooring support.
Vendor: Buzon
SKU: BUZPB/1
Availability: In Stock
$5.98
$5.98
Prices do not include GST
Physical Properties
Material: Copolymer polypropylene (cpp)
Composition: 80% first-grade pre-selected recycled ppc, 20% talc + masterbatch black
Weight: 309g
Height adjustable range: 42mm to 60mm
Height with slope corrector: 56mm to 74mm
Temperature resistance: -30°c to +80°c
Load capacity: 1,435kg (3,225 lbf) per pedestal
Compression test: Full surface - yield strength: 14.35 kn (1,435kg, 3,225 lbf), breaking load: 7.2 kn (720kg, 1,587 lbf); half surface - yield strength: 7.93 kn (793kg, 1,751 lbf), breaking load: 4.0 kn (400kg, 899 lbf); quarter surface - yield strength: 5.53 kn (553kg, 1,244 lbf), breaking load: 2.8 kn (280kg, 629 lbf)
Certifications: European quality standards, compression-tested
Resistance: Weathering, sea salts, algae, chemicals
Applications: Terraces, pool decks, rooftops, water features, public spaces
Storage requirements: Store in a dry, covered area

Couldn't load pickup availability

Shipping & Delivery

$15.95 + GST for Australia-wide shipping, excluding DG, oversized, long-length, and bagged items over 15kg. Rural, remote areas and site deliveries are also ineligible. If your order includes any of these, we will contact you to arrange additional freight fees. Online purchases only.

Download Product TDS
Buzon PB-1 Adjustable Pedestal (42-60mm)
Buzon
Buzon PB-1 Adjustable Pedestal (42-60mm)
$5.98
Buzon PB-1 Adjustable Pedestal (42-60mm)
Buzon PB-1 Adjustable Pedestal (42-60mm)
Buzon PB-1 Adjustable Pedestal (42-60mm)
Buzon
Buzon PB-1 Adjustable Pedestal (42-60mm)
$5.98
Packaging: Single Buy
Description
Common problems this product solves: Provides a stable, adjustable, and weather-resistant support system for raised flooring applications.

The PB-1 Adjustable Pedestal is a professional-grade support system for external raised flooring installations. With an adjustable height range of 42-60mm, it ensures easy installation and precise leveling. Manufactured in Europe from high-performance Copolymer Polypropylene (CPP), it offers exceptional resistance to chemicals, weather, and mechanical stress. The PB-1 pedestal is widely used in commercial and residential projects, supporting applications such as rooftop terraces, pool decks, and landscaping areas.

Key Features

  • Adjustable height: 42mm to 60mm
  • Compatible with U-PH5 slope corrector for further height and leveling adjustments
  • Made from high-quality Copolymer Polypropylene (CPP)
  • Resistant to weathering, sea salts, and chemical exposure
  • Manufactured in Europe using eco-friendly recycled materials
  • Supports a wide range of finishing materials such as stone, timber, ceramic, and composite decking

Technical Overview

  • Material: Copolymer Polypropylene (CPP)
  • Temperature Resistance: -30°C to +80°C
  • Weight: 309g
  • Load Capacity: Up to 1435kg (3225 lbF) per pedestal

Trade Professional Information

  • Required Tools: Standard leveling tools, measuring tape
  • Trade-Specific Tips: Ensure stable substrate before installation for maximum durability
  • Common Issues and Solutions: For uneven surfaces, use the U-PH5 slope corrector to adjust levels

Storage and Shelf Life

  • Storage Requirements: Store in a dry, covered area
  • Shelf Life: Indefinite under proper storage conditions
  • Temperature Considerations: Avoid prolonged exposure to extreme heat or UV radiation

Certifications

  • Manufactured to European quality standards
  • Made from EU-sourced recycled materials
  • Compression-tested for load-bearing compliance

Frequently Asked Questions About PB-1 Adjustable Pedestal

  • Can the PB-1 be used for vehicular traffic? No, it is designed for pedestrian applications only.
  • What is the maximum weight capacity? The PB-1 can support up to 1435kg in optimal conditions.
  • Does it work on waterproof membranes? Yes, it is compatible with waterproofing systems.
Uses & Benefits

Benefits

  • Quick and easy installation
  • Adjustable height for precise leveling
  • Durable and weather-resistant
  • Supports multiple flooring materials
  • Eco-friendly construction using recycled materials

Application Guide

  1. Ensure the substrate is stable and load-bearing
  2. Place the PB-1 pedestal at designated intervals
  3. Adjust the height to level the surface
  4. Secure flooring materials onto the pedestal system
  5. Perform a final check for stability before use
How To Apply

Application Guide

  1. Ensure the substrate is stable and load-bearing
  2. Place the PB-1 pedestal at designated intervals
  3. Adjust the height to level the surface
  4. Secure flooring materials onto the pedestal system
  5. Perform a final check for stability before use

For the installation guide on height adjustment from PB-0-S18 to PB-4 or from PB-3 to PB-4, please download the Installation Manual Height Adjustment.

Limitations and Safety Info

Limitations

  • Not suitable for use with vibrating or heavy machinery
  • Designed for pedestrian traffic only
  • Should not be installed on unstable substrates
Suitable Substrates

Suitable Substrates

  • Concrete slabs
  • Cement screeds
  • Waterproof membranes
  • Insulation panels
