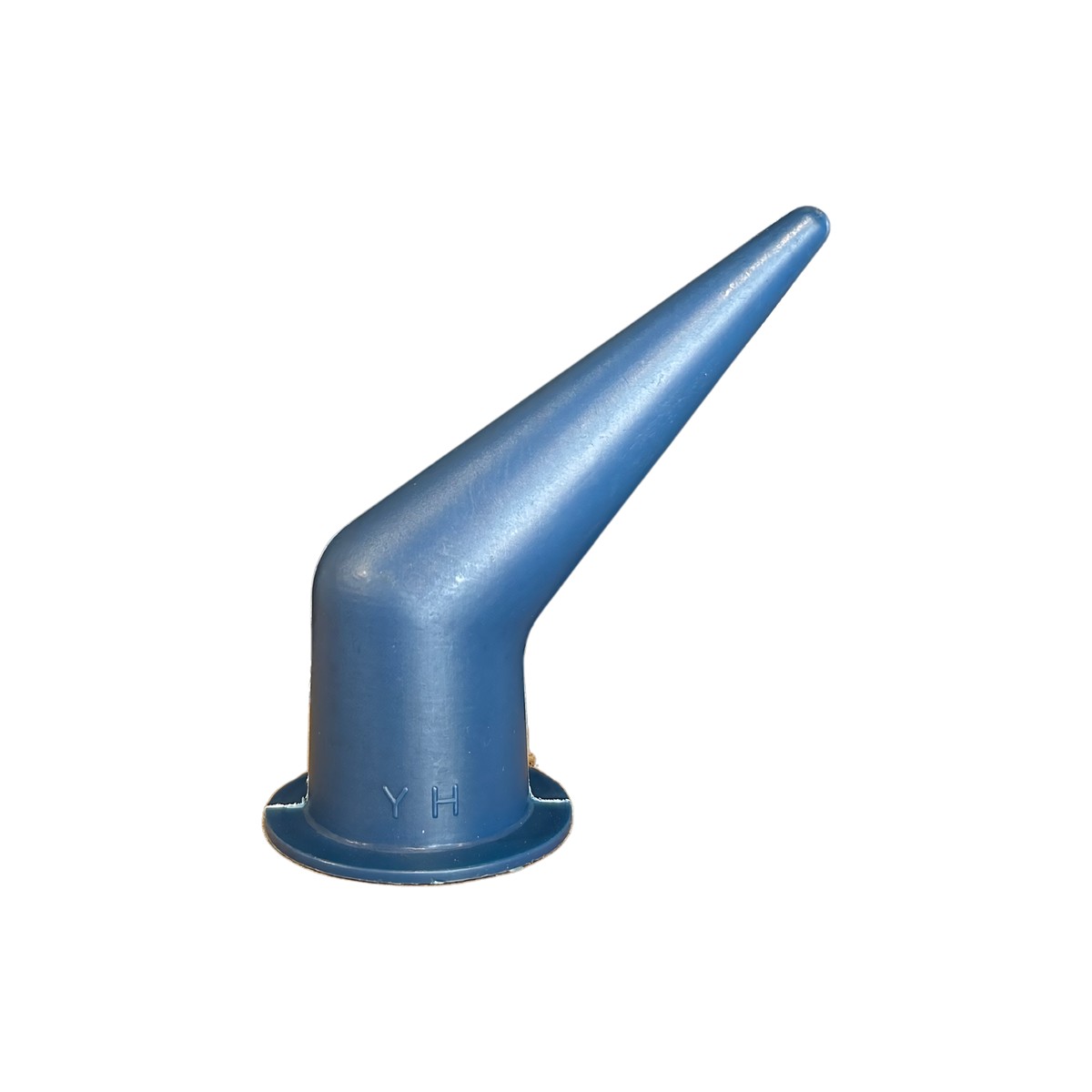

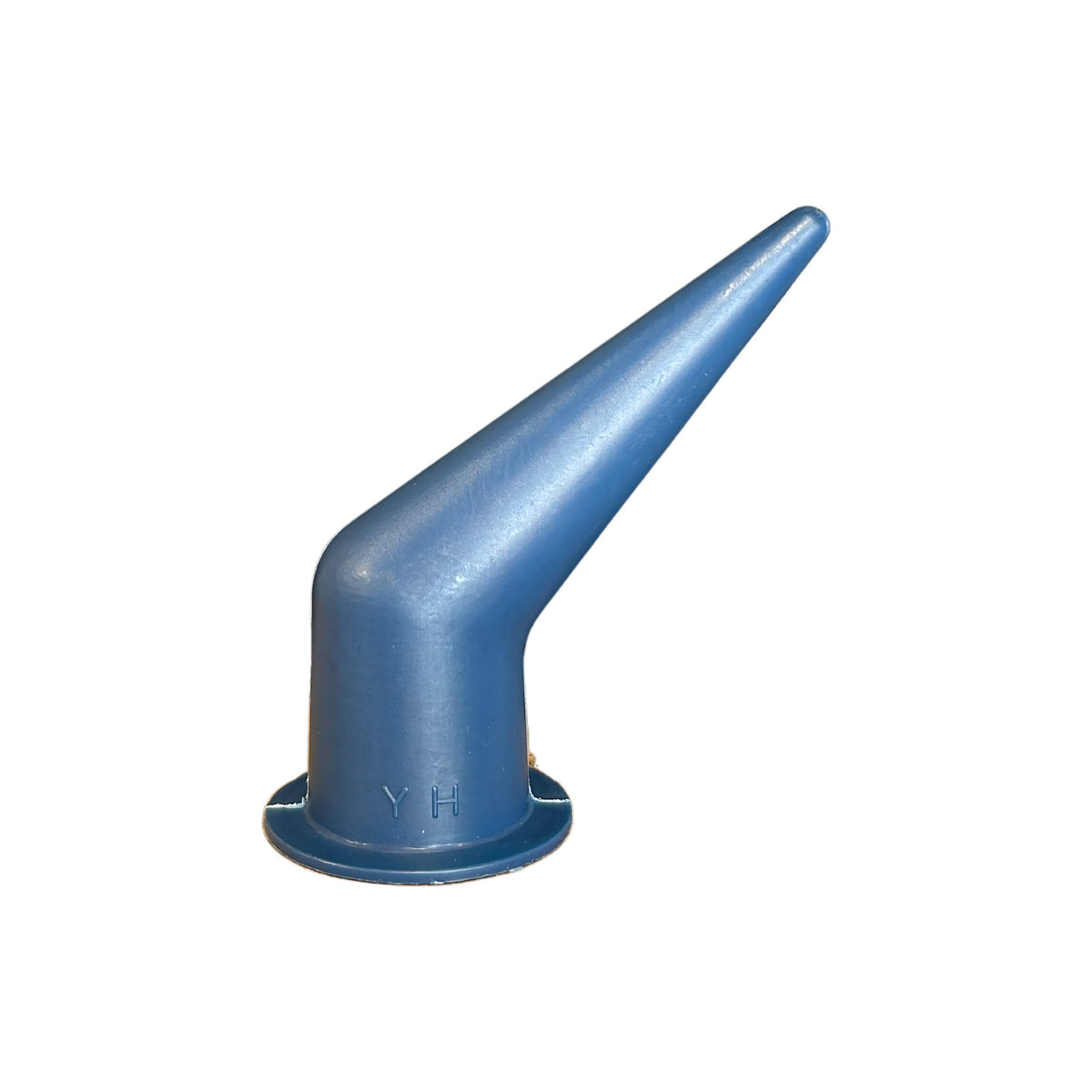

45 Degree Sausage Gun Nozzle 38mm is a precision-moulded applicator designed for high-stakes sealing in complex architectural geometries and restricted access areas. Featuring a fixed 45-degree angle and a smooth internal bore, it prevents sealant backup while ensuring a steady, non-pulsing flow during extrusion.
The rigid high-density polymer construction provides a secure fitment that resists warping under pressure, reducing the risk of nozzle pop-off or inconsistent joint wetting in overhead expansion joints and recessed window frames.
Frequently Asked Questions About 45 Degree Sausage Gun Nozzle – 38mm
Q: Can this nozzle be used with any 38mm sausage gun?
A: Yes, the nozzle is designed to universally fit all 38mm sausage-style applicators, offering a secure fit and consistent extrusion regardless of the gun brand.
Q: What materials can I apply with this nozzle?
A: It is suitable for most sealants and adhesives including silicones, polyurethanes, acrylics, and hybrid polymer systems—ideal for both vertical and angled applications.
Q: Does the nozzle come pre-cut?
A: No, the nozzle tip is solid and should be cut to your preferred bead size and angle to suit the job’s requirements. This gives better control over flow rate and finish.
Q: Is this nozzle reusable?
A: It is technically reusable if cleaned thoroughly after use, but for professional settings and optimal hygiene, replacement is generally recommended after each job.
Applying 45 Degree Sausage Gun Nozzle: Protocols & Best Practices
General Application Steps:- Preparation: Choose the correct sealant or adhesive and ensure your sausage gun is compatible with a 38mm nozzle. Cut the nozzle to the desired bead size and angle.
- Installation: Fit the nozzle securely onto the sausage gun. Insert the sausage into the gun and ensure an airtight fit.
- Application: Apply sealant smoothly using the angled nozzle to follow the joint line precisely, especially in overhead or angled joints.
- Tooling: If needed, tool the sealant within the working time to ensure proper wetting and surface contact.
Applying 45 Degree Sausage Gun Nozzle: Protocols & Best Practices
General Application Steps:- Preparation: Choose the correct sealant or adhesive and ensure your sausage gun is compatible with a 38mm nozzle. Cut the nozzle to the desired bead size and angle.
- Installation: Fit the nozzle securely onto the sausage gun. Insert the sausage into the gun and ensure an airtight fit.
- Application: Apply sealant smoothly using the angled nozzle to follow the joint line precisely, especially in overhead or angled joints.
- Tooling: If needed, tool the sealant within the working time to ensure proper wetting and surface contact.
Applications & Benefits
| Application / Use Case | Key Benefit | Primary Trades |
|---|---|---|
| Overhead or vertical sealant application | Reduces wrist strain and improves bead control at difficult angles | Glaziers, Builders |
| Caulking tight access corners or reveals | Enables clean finish without excessive tooling or over-application | Joiners, Carpenters |
| Angled façade cladding joints | Provides consistent flow rate and smooth finish around angled details | Facade Installers, Commercial Fitout Teams |
| Window and glazing frame perimeters | Ensures proper joint fill and surface contact in complex geometries | Window Installers, Glaziers |
Limitations & Safety
Limitations:
- Not suitable for use with cartridge guns – for 38mm sausage guns only
- Cannot correct poor sealant choice or incorrect joint design – this is an applicator aid
Safety & Handling:
- PPE: Wear gloves and eye protection when working with chemical sealants.
- Ventilation: Use in well-ventilated areas to avoid vapour build-up from sealants.
- Handling: Dispose of used nozzles responsibly. Do not reuse if contaminated.
- First Aid: Follow sealant manufacturer’s SDS for first aid procedures. Nozzle itself poses no direct hazard.
Substrate Compatibility & Application Suitability
This nozzle itself does not contact substrates directly but instead enhances the application precision of sealants and adhesives onto a variety of substrates. Its angled shape helps achieve better contact and finish when sealing or bonding to:
- Glass & Glazing Frames – improved joint access in tight corners
- Metal Panels & Flashings – clean application along bends and seams
- Masonry & Concrete – targeted placement in control joints and expansion gaps
- Timber Joinery – ideal for awkward window frame recesses
- PVC and Composite Claddings – angled delivery improves visual neatness
Note: Actual substrate compatibility depends on the sealant or adhesive used. This nozzle supports better finish and joint integrity by directing the product where it's needed most.
45 Degree Sausage Gun Nozzle 38mm Physical Properties
| Property | Value |
|---|---|
| Nozzle Angle | 45 degrees |
| Nozzle Diameter | 38 mm |
| Material Type | High-Density Polymer |
| Compatibility | Fits standard 38mm sausage guns |
| Application Uses | Angled joints, overhead sealing, precision caulking |
| Reusable | Yes (with cleaning) |
| Trim to Size | Yes |
| Certifications | General safety compliant (non-regulated accessory) |
