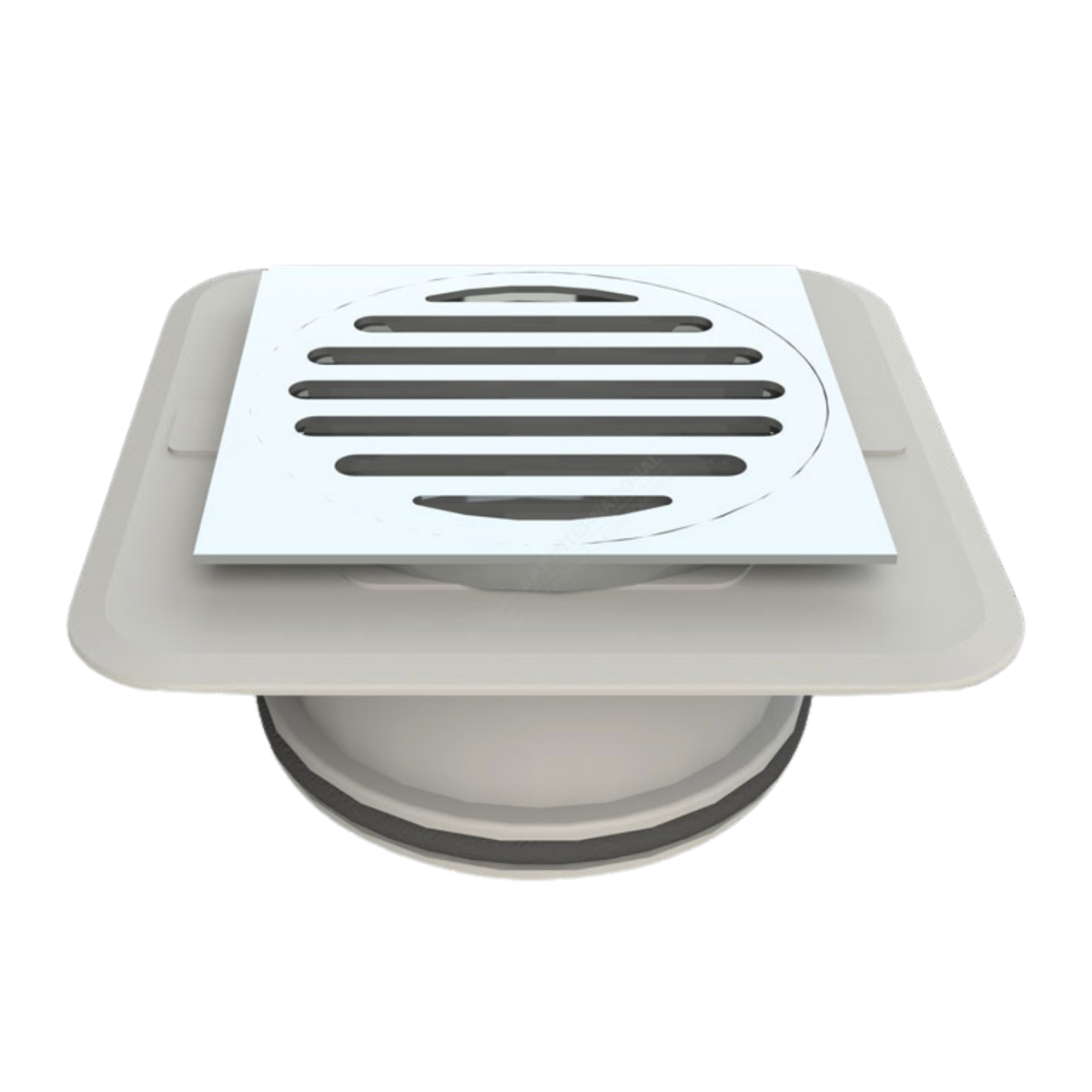

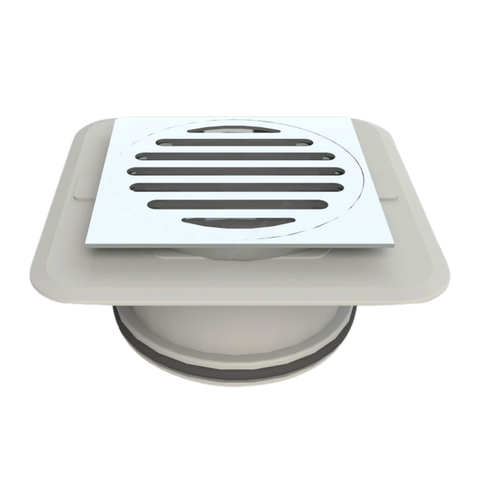

100mm Square Stick Down Megaflex™ is ART Australia's low-profile direct-stick floor waste with a square brass grate and Megaflex™ base. Its square geometry suits tiled wet areas where the visible grate is intended to align with the floor grid.
Best for
- 100mm point-drain pipework.
- Direct-stick installations where a lower-profile floor waste is preferred.
- Tiled bathrooms, showers and wet areas where a square visible grate suits the layout.
Why choose it over the raised Megaflex waste
The Stick Down format is the lower-profile option. The raised 100mm Megaflex floor waste is the alternative where its taller body and grate arrangement better suit the floor build-up.
Compare point drainage wastes or browse all floor wastes and grates.
100mm bore for standard wet-area drainage.
Stick-down ABS Megaflex flange bonds in and suits membranes.
145 x 145mm footprint, 67mm high: fits shallow screeds, lines up with the tile grid.
Set the waste to the screed fall, stick it down at the outlet, and run the membrane over the flange. Keep the grate out during tiling and seat it after the membrane cures so the flange stays clean.
Check the membrane manufacturer accepts ABS contact before relying on the bond. Match the 100mm outlet to your pipework.
100mm Square Stick Down Megaflex™ Physical Properties
| Property | Value |
|---|---|
| Outlet Size | 100 mm |
| Installation Type | Stick Down, Low Profile |
| Standards Compliance | WaterMark Certified, ISO 9001, AS/NZS 3500 |
| Chemical Properties | Brass, ABS Plastic |
| Application Temperature | 5°C to 60°C |
| Storage Temperature | 5°C to 25°C |
| Shelf Life | Unlimited (under proper storage conditions) |
