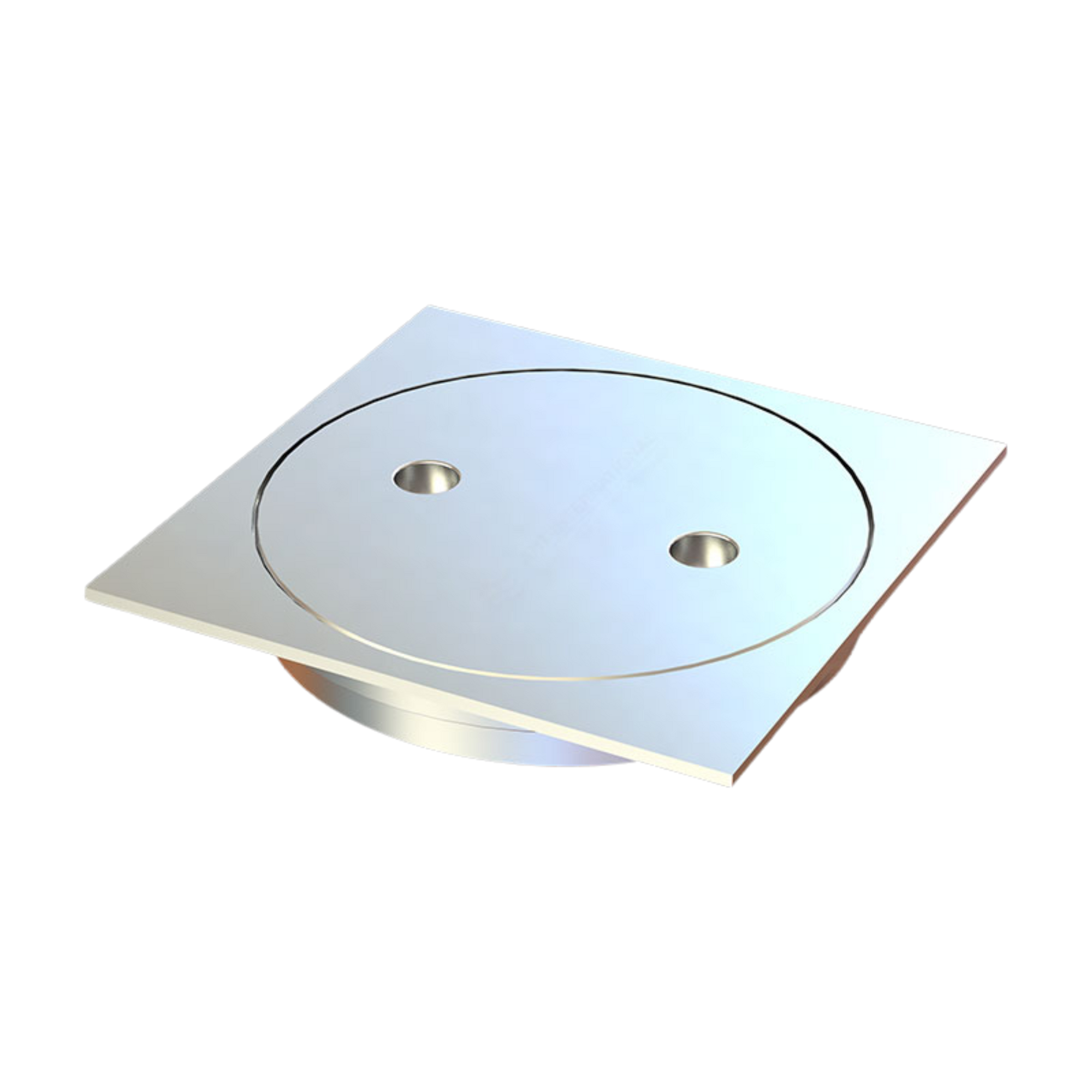

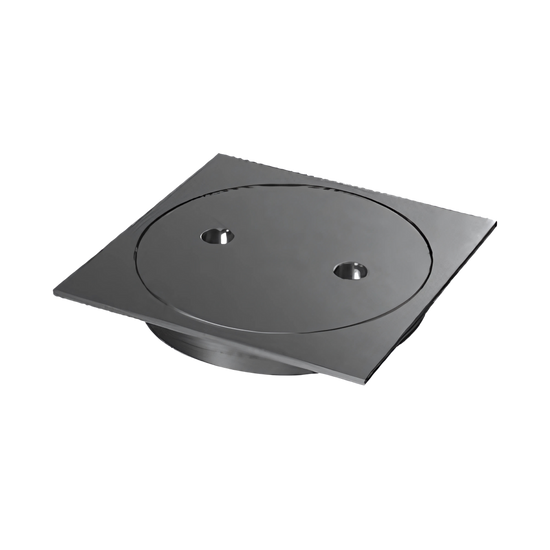

A flush square grate that gives tool-free access to a 100mm drain clearout. Pull it out to rod the line, drop it back in: no fasteners, no special tools, and the floor finish runs continuous around it.
Low profile suits finished floors in commercial and residential wet areas, and the entry point supports wet-area compliance work under AS 3740.
Frequently asked questions
How is the 100mm CP Clearout Square Grate installed?
Installation is a straightforward push-in friction fit into a 100mm outlet. Ensure the drain opening is clean and the surrounding floor is level for a secure seating. Silicone can be used around the Megaflex™ base for added stability if required.
Can this floor grate handle high-traffic environments?
Yes, the solid brass construction makes it suitable for high-traffic areas. Brass offers inherent durability and resistance to wear, making it a reliable choice for both residential and commercial wet areas.
What types of tiles are compatible with this grate?
This grate is compatible with ceramic, porcelain, and natural stone tiles. The square design and flush fit ensure a seamless integration with various flooring types, supporting consistent aesthetic finishes.
Does this grate meet Australian plumbing standards?
Yes, the 100mm CP Clearout Square Grate is WaterMark Certified and complies with AS 3740. This confirms it meets Australian standards for plumbing and drainage products, ensuring suitability for wet area installations.
What should I do if the grate becomes loose over time?
If the grate becomes loose, apply a bead of silicone sealant around the Megaflex™ base before reinserting it. This will enhance the friction fit and provide additional grip and stability in high-movement areas.
Substrate guide
This guide outlines the necessary floor preparation to ensure a secure and flush seating of the 100mm CP Clearout Square Grate.
Ceramic tile
Surface prep: The subfloor and tile bed surrounding the drainage point must be level and free from debris. This provides a stable and flush surface for the grate installation.
Primer: Not applicable.
Porcelain tile
Surface prep: Prepare the floor according to standard tiling practices for porcelain. Ensure the drainage opening is square and level to precisely accommodate the grate's 100mm dimensions.
Primer: Not applicable.
Natural stone
Surface prep: As with other tile types, achieve a level and clean installation area. If the specific natural stone requires sealing, complete this process for the surrounding tiles to protect against moisture before the final grate placement.
Primer: Not applicable.
100mm CP Clearout Square Grate Physical Properties
| Property | Value |
|---|---|
| Material | Brass, ABS Megaflex Base |
| Finish | Chrome Plated |
| Outlet Size | 100 mm |
| Grate Size | 100 mm Square |
| Installation Type | Push-In |
| Available Finishes | Chrome, Matt Black |
| Storage Temperature | 5°C to 40°C |
| Certifications | WaterMark Certified, AS 3740 Compliance |
