Physical Properties
Composition:
Polyurethane
Colour:
White, off white, sandstone, pale brown, japan beige, grey, dark grey, brick red, redwood, black, dark amber
Density:
1.25 kg/l
Shore a hardness:
25
Secant tensile modulus:
0.35 n/mm² at 100% elongation (23°c), 0.50 n/mm² at 100% elongation (-20°c)
Tensile strain at break:
750%
Movement capability:
±25%
Elastic recovery:
90%
Tear propagation resistance:
5.5 n/mm
Service temperature:
-40°c to +70°c (-40°f to 158°f)
Joint design:
Width ≥ 10 mm and ≤ 40 mm, width to depth ratio 2:1
Consumption:
Varies based on joint size, see data sheet
Sag flow:
0 mm (20 mm profile, 50°c)
Ambient air temperature:
+5°c to +40°c (41°f to 104°f), min. 3°c above dew point temperature
Substrate temperature:
+5°c to +40°c (41°f to 104°f)
Backing material:
Closed cell polyethylene foam backing rods
Curing rate:
3 mm/24 hours at 23°c and 50% rh
Skinning time:
170 minutes at 23°c and 50% rh
Tooling time:
150 minutes at 23°c and 50% rh
Shelf life:
12 months from date of production
Storage conditions:
+5°c to +25°c (41°f to 77°f), dry conditions, protected from direct sunlight
Standards compliance:
As/nzs 4020:2018, iso 11600 f 25 lm, astm c 920 class 25

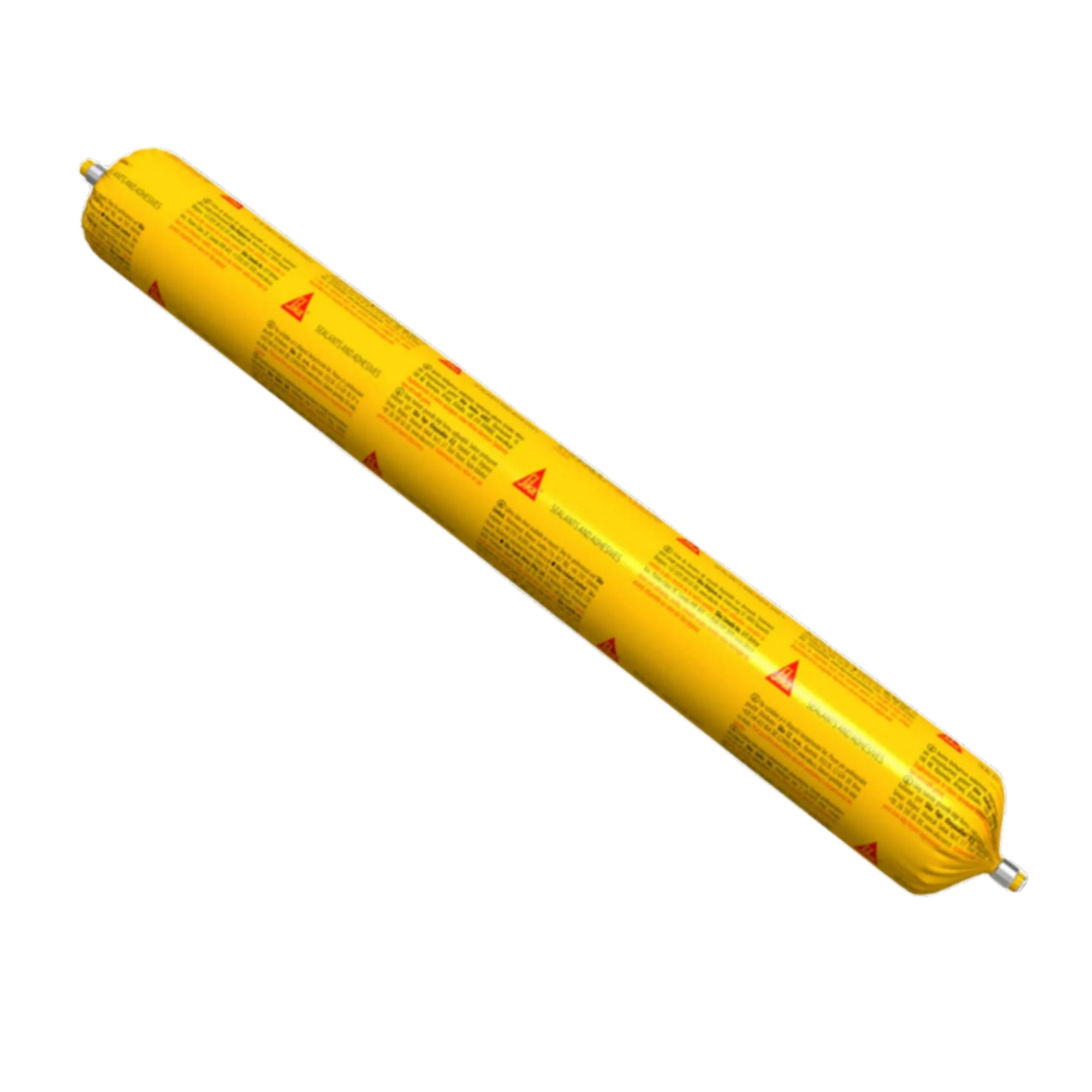

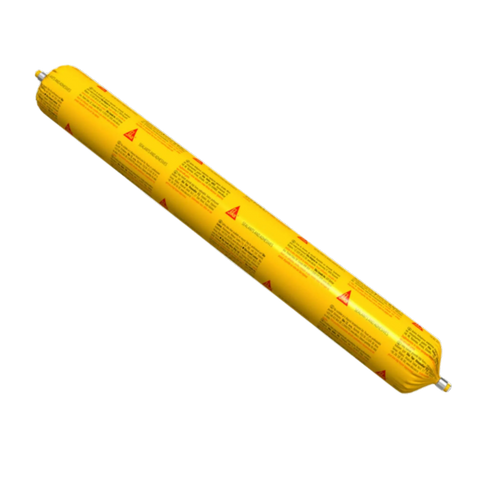

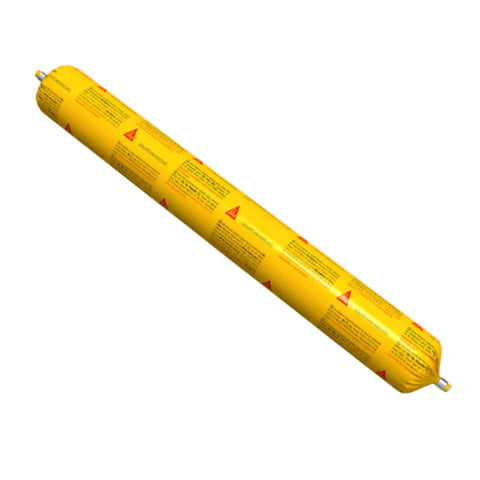

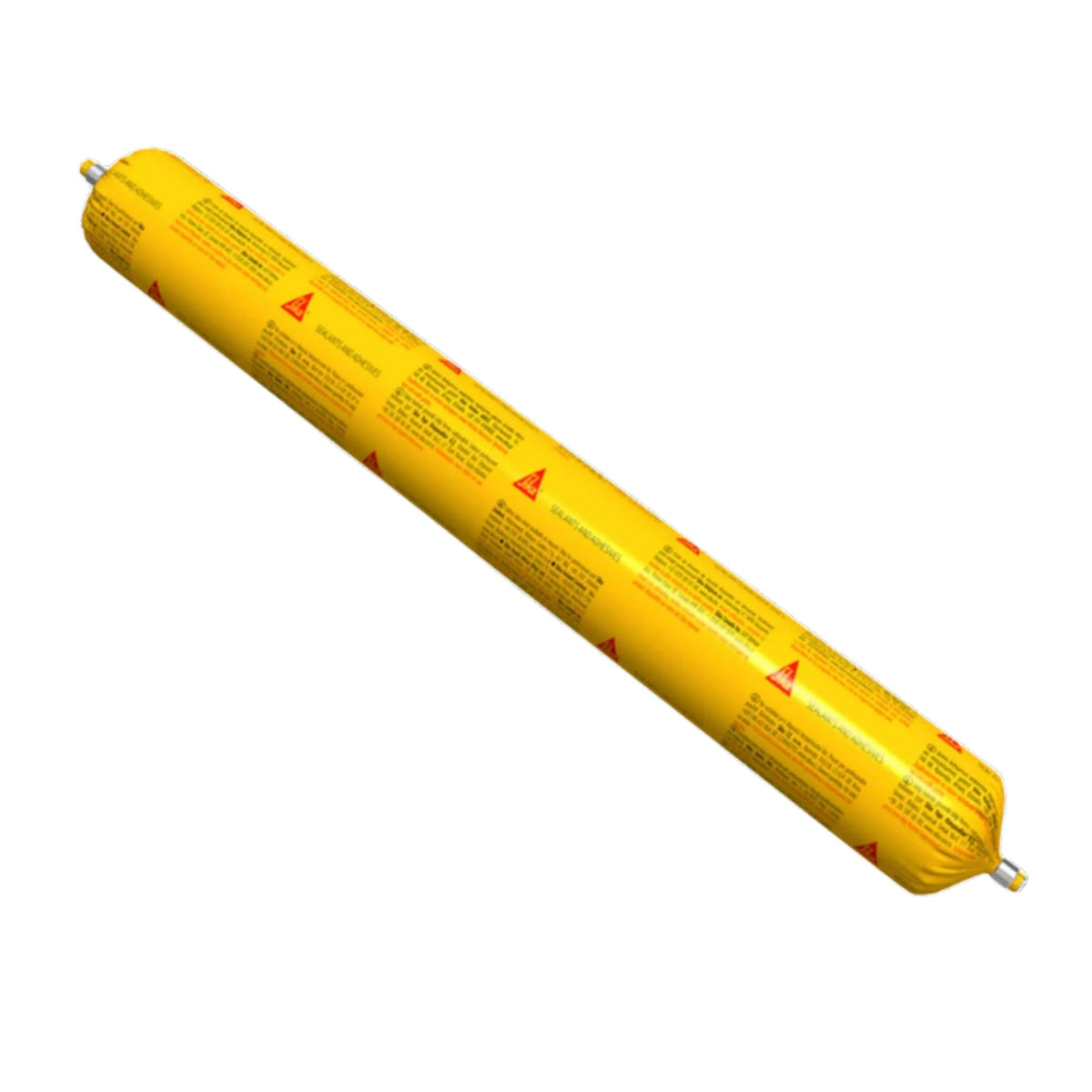

Packaging options:
310ml cartridge, 600ml foil pack
