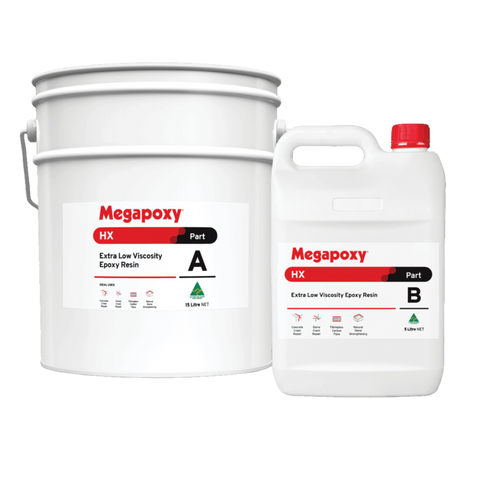

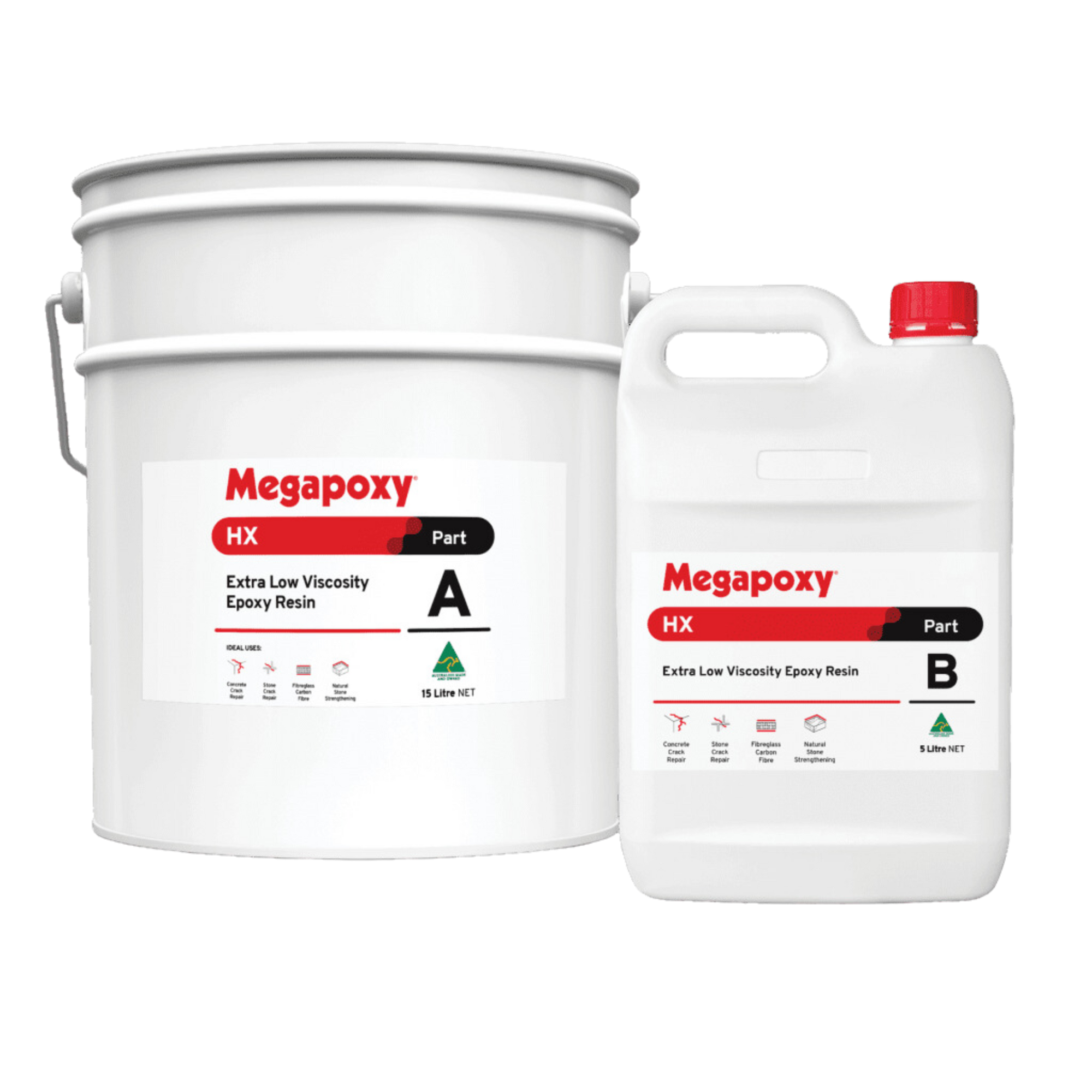

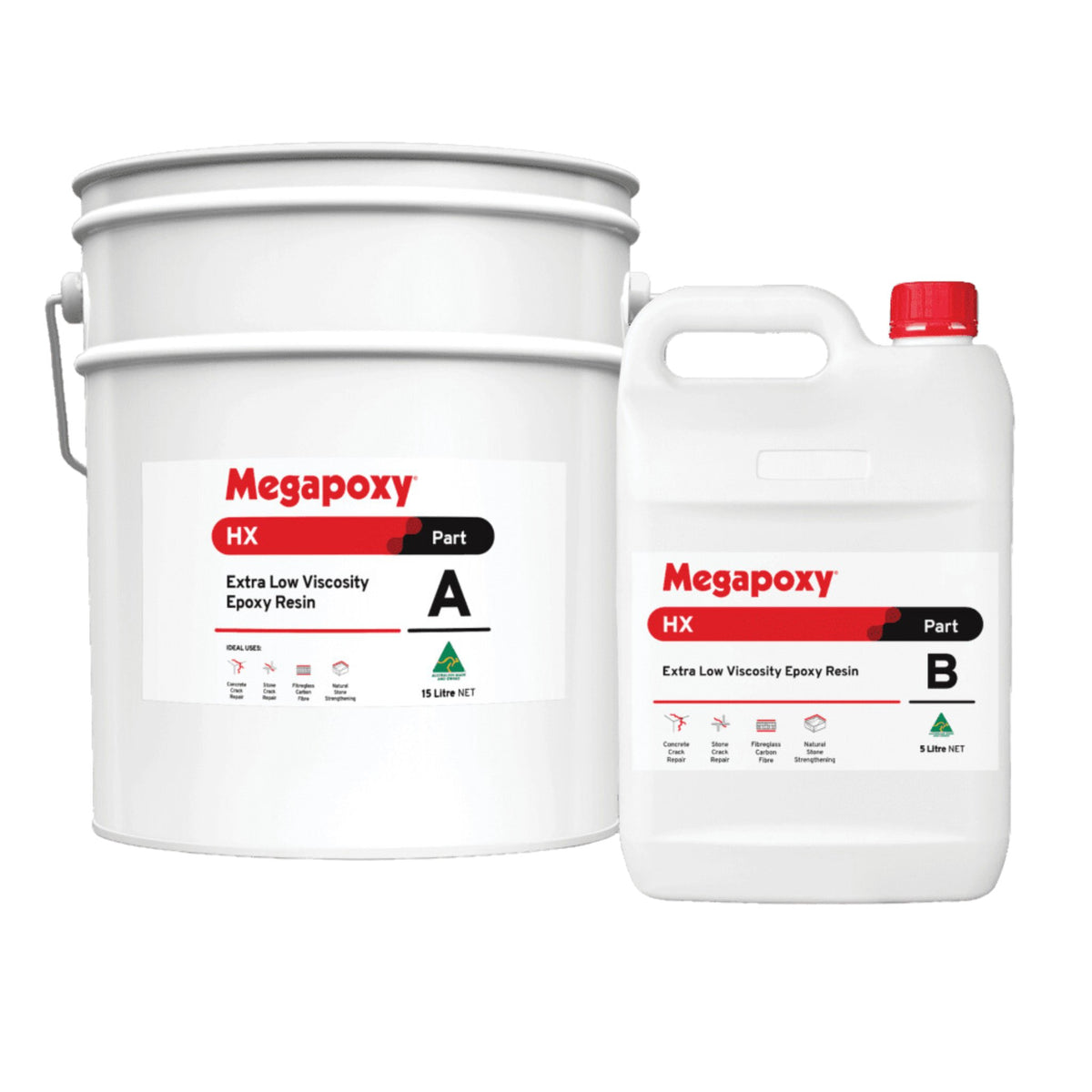

Megapoxy HX Extra Low Viscosity Epoxy Resin

Megapoxy HX Extra Low Viscosity Epoxy Resin

Megapoxy HX: 100% solids, low-viscosity epoxy for concrete crack repair, injection, and lamination. Solvent-free, hydrophilic.
Vendor: Megapoxy
SKU: MPHX/4
Availability: In Stock
$160.32
$160.32
Prices do not include GST
Physical Properties
Mixing ratio by volume: 3:1 (part a:part b)
Work time at 25°c: 60 minutes
Minimum cure time at 15°c: 48 hours
Minimum cure time at 25°c: 24 hours
Minimum cure time at 35°c: 12 hours
Thin film cure at 25°c: 4-6 hours
Minimum application temperature: 10°c
Viscosity part a at 25°c: 400-600 cps
Viscosity part b at 25°c: 15-20 cps
Mixed viscosity at 25°c: 200 cps
Specific gravity part a at 25°c: 1.10-1.12
Specific gravity part b at 25°c: 0.95-0.97
Mixed specific gravity at 25°c: 1.07
Colour part a: Clear
Colour part b: Clear
Compressive strength astm d695: 95 mpa
Bond strength concrete astm d4541: >3 mpa
Tensile bond strength steel astm d897: 20 mpa
Modulus of elasticity astm d695: 11 gpa
Flexural strength astm d790: 35 mpa
Tensile strength astm 638: 35 mpa
Tensile shear strength astm d1002: 10 mpa
Hardness shore d astm d2240: >75

Couldn't load pickup availability

Shipping & Delivery

$15.95 + GST for Australia-wide shipping, excluding DG, oversized, long-length, and bagged items over 15kg. Rural, remote areas and site deliveries are also ineligible. If your order includes any of these, we will contact you to arrange additional freight fees. Online purchases only.

Download Product TDS Download Product SDS
Megapoxy HX Extra Low Viscosity Epoxy Resin
Megapoxy
Megapoxy HX Extra Low Viscosity Epoxy Resin
$160.32
Megapoxy HX Extra Low Viscosity Epoxy Resin
Megapoxy
Megapoxy HX Extra Low Viscosity Epoxy Resin
$160.32
Size: 4L Kit
Description
Use Megapoxy HX for: Concrete crack repair, precise casting, and laminating porous materials.

Megapoxy HX is a specially formulated, extra low viscosity epoxy resin designed for demanding applications. Its 100% solids, solvent-free formula ensures minimal shrinkage and a powerful bond, making it ideal for deep concrete crack repairs via gravity penetration or low-pressure injection. This hydrophilic resin also excels in impregnating porous substrates like masonry and timber, and serves as a reliable laminating resin for fibreglass work.

Key Features of Megapoxy HX

  • Extra Low Viscosity: Penetrates deeply into fine cracks and porous materials, ensuring thorough repairs and impregnations.
  • 100% Solids, Solvent-Free: Provides a strong, durable bond with minimal shrinkage and reduced VOCs, enhancing workplace safety.
  • Hydrophilic Properties: Bonds effectively to slightly damp concrete, expanding application possibilities and ensuring reliable repairs even in challenging conditions.
  • High Strength: Exhibits exceptional compressive, tensile, and flexural strengths, surpassing the capabilities of concrete for long-lasting repairs.
  • Versatile Application: Suitable for casting, low-pressure injection, surface hardening, floor repairs, laminating, masonry sealing, capillary action, and vacuum bagging.

Technical Overview

Megapoxy HX is engineered for superior performance in demanding applications. Its low viscosity allows for easy mixing and deep penetration, ensuring complete coverage and strong bonds. The precise 3:1 mixing ratio (Part A to Part B) is essential for optimal curing and performance.

Chemical Properties: 100% solids, solvent-free, hydrophilic epoxy resin. This formulation provides excellent adhesion and minimal shrinkage.

Application Temperature Range: Minimum application temperature of 10°C (50°F). Ensure the substrate is within this range for proper curing and bonding. Cure times vary: 60 minutes work time at 25°C, 48 hours minimum cure at 15°C, 24 hours at 25°C, and 12 hours at 35°C. Thin film cure at 25°C is 4-6 hours.

Application Information

  • Required Tools: Mixing containers, measuring jugs, low-pressure injection equipment (if applicable), spatulas, and personal protective equipment (PPE).
  • Trade-Specific Tips: Ensure accurate measurement of Part A and Part B for proper curing. For deep cracks, use low-pressure injection to ensure complete penetration. When laminating, ensure proper wetting of fibreglass materials.
  • Common Issues and Solutions: Incomplete curing can result from incorrect mixing ratios or low temperatures. Ensure accurate measurements and maintain a minimum temperature of 10°C.

Storage and Shelf Life

  • Storage Requirements: Store in a cool, dry place away from direct sunlight.
  • Shelf Life Information: Refer to the product packaging for specific shelf life information.
  • Temperature Considerations: Avoid storing in extreme temperatures, which can affect product viscosity and curing properties.

Certifications

  • ASTM D695 (Compressive Strength and Modulus of Elasticity)
  • ASTM D4541 (Bond Strength Concrete)
  • ASTM D897 (Tensile Bond Strength Steel)
  • ASTM D790 (Flexural Strength)
  • ASTM 638 (Tensile Strength)
  • ASTM D1002 (Tensile Shear Strength)
  • ASTM D2240 (Hardness - Shore D)
Common Questions

Frequently Asked Questions About Megapoxy HX

Q: How do I ensure proper mixing of Megapoxy HX?

A: Measure Part A and Part B accurately using a 3:1 volume ratio. Mix thoroughly until a uniform consistency is achieved. Improper mixing can lead to incomplete curing and reduced strength.

Q: What is the ideal temperature for applying Megapoxy HX?

A: The minimum application temperature is 10°C. Warmer temperatures will accelerate curing. Ensure the substrate is also within this temperature range for optimal bonding and performance.

Q: Can Megapoxy HX be used on damp concrete?

A: Yes, Megapoxy HX is hydrophilic, allowing it to bond effectively to slightly damp concrete. However, standing water should be removed for best results.

Q: What surface preparation is required for concrete crack repair?

A: Clean the concrete surface to remove grease and oil. Remove surface laitance through mechanical abrasion or acid etching. Ensure the surface is dry for maximum adhesion.

Q: How long does Megapoxy HX take to cure?

A: Cure times vary based on temperature. At 25°C, expect a 24-hour minimum cure time. At 15°C, it's 48 hours, and at 35°C, it's 12 hours. Thin film cure at 25°C is 4-6 hours.

Uses & Benefits

Use Megapoxy HX for:

  • Concrete crack repair via gravity penetration or low-pressure injection.
  • Casting of intricate parts and components.
  • Laminating fibreglass for structural applications.
  • Impregnating and sealing porous materials like masonry and timber.
  • Surface hardening of concrete floors and structures.
  • Floor repairs.
  • Capillary action and vacuum bagging.

Why Use Megapoxy HX:

  • Extra Low Viscosity: Ensures deep penetration and complete coverage, resulting in strong and durable repairs.
  • 100% Solids, Solvent-Free: Minimises shrinkage and reduces VOC emissions, enhancing workplace safety and repair longevity.
  • High Strength: Provides exceptional compressive, tensile, and flexural strengths, surpassing concrete's capabilities.
  • Hydrophilic Properties: Bonds effectively to slightly damp concrete, expanding application possibilities and ensuring reliable repairs.
  • Versatile Application: Suitable for a wide range of applications, from concrete repair to laminating and casting.
How To Apply

How to apply Megapoxy HX:

  1. Prepare the Surface: Clean and prepare the substrate as per the surface preparation guidelines. Remove any loose materials and contaminants.
  2. Measure and Mix: Accurately measure Part A and Part B in a 3:1 volume ratio. Mix thoroughly until a uniform consistency is achieved.
  3. Apply the Resin: Apply Megapoxy HX using gravity penetration, low-pressure injection, or other suitable methods. Ensure complete coverage and penetration.
  4. Allow to Cure: Allow the resin to cure according to the recommended cure times based on the ambient temperature.
  5. Clean Up: Clean tools and equipment with Megapoxy Thinners before the resin cures.
Limitations and Safety Info

Megapoxy HX limitations:

  • Minimum application temperature is 10°C.
  • Ensure proper mixing ratio and thorough mixing.
  • Proper surface preparation is crucial for adhesion.
  • Wear appropriate PPE, including gloves and eye protection.
  • Ensure adequate ventilation during application.
Suitable Substrates

Megapoxy HX can be used on the following substrates:

  • Concrete: Ensure surface is clean and free from laitance.
  • Masonry: Suitable for impregnating porous masonry.
  • Timber: Ideal for strengthening and sealing timber structures.
  • Steel: Requires proper surface preparation, such as grit blasting, for optimal adhesion.
  • Fibreglass: Excellent for laminating applications.
