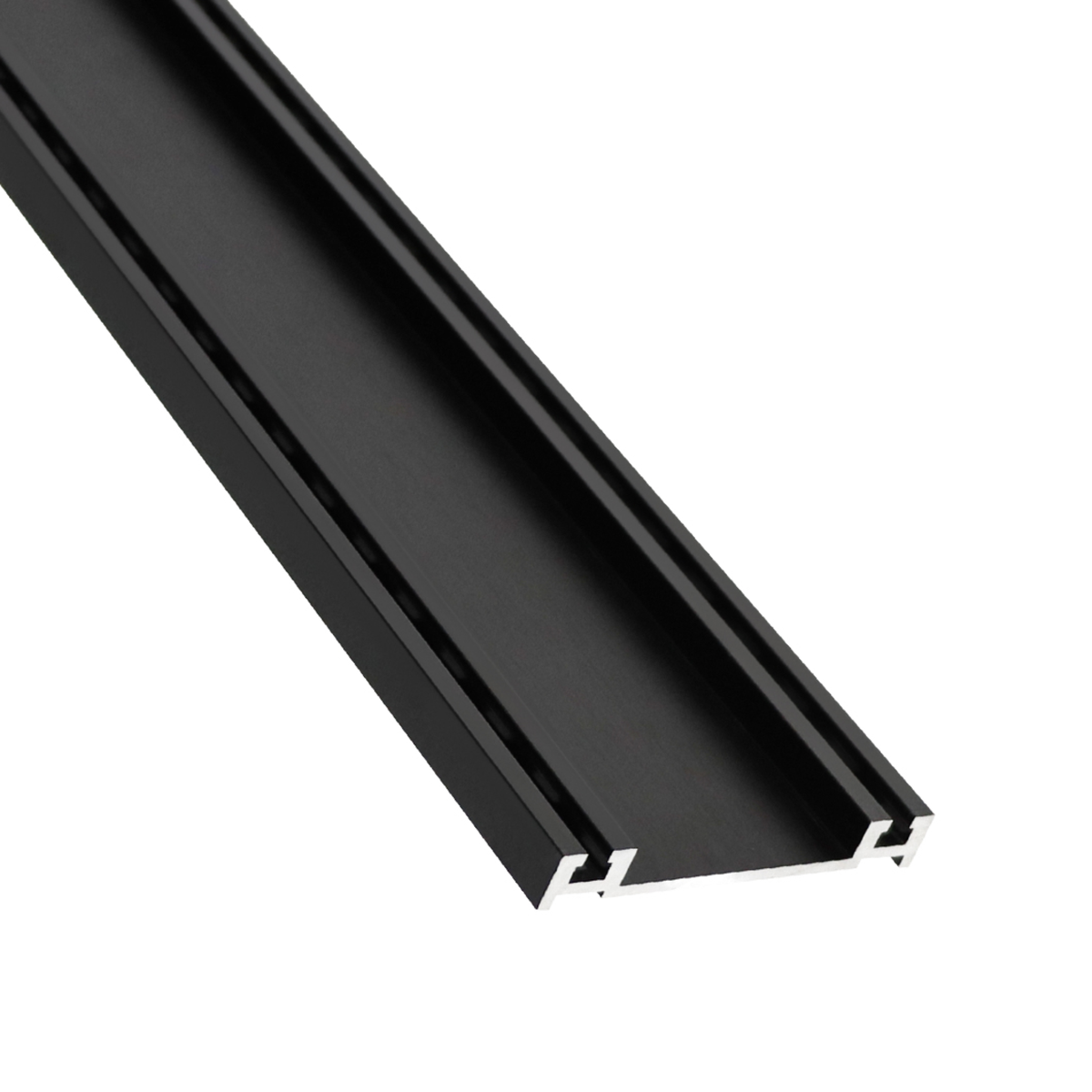

Lauxes Grates Midnight Storm Water Tile Insert 128 is a professional-grade UV-stabilised aluminium stormwater grate engineered to provide a seamless architectural finish for driveways and high-traffic outdoor areas. Rated for 10.2 tonnes, this 128mm wide insert accommodates tiles up to 13mm thick, effectively eliminating the risk of grate deformation or rust-related tile staining.
Its non-corrosive composition and 25-year no-fade guarantee ensure long-term structural integrity and aesthetic consistency in harsh coastal or high-UV environments.
Frequently asked questions
What tile thickness can the Tile Insert 128 accommodate?
The Tile Insert 128 is designed to hold tiles or pavers up to 13 mm thick. This ensures a consistent, flush surface where the grates integrate cleanly with surrounding finishes.
Can this grate be cut to custom lengths on site?
Yes, the aluminium profile can be cut on site. Use a fine-tooth non-ferrous metal blade for a clean cut. Always measure precisely and deburr any sharp edges before final installation.
Is this grate suitable for vehicle traffic?
Yes, the grate is rated for loads up to 10.2 tonnes. This makes it appropriate for driveways, carparks, and other high-traffic outdoor areas where vehicles are present.
Applications and benefits
| Application | Key benefit | Primary trades |
|---|---|---|
| Tiled patios and alfresco areas | Delivers a seamless finish with an integrated tile recess, maintaining aesthetic continuity. | Tilers, builders, landscapers |
| Driveways and high-load stormwater channels | Withstands loads up to 10.2 tonnes, ensuring durability and preventing deformation under vehicle traffic. | Builders, concreters, drainage installers |
| Poolside and outdoor living spaces | Features a UV-stable and rustproof finish that resists fading, even in harsh sunlight or saltwater environments. | Pool builders, waterproofers, landscapers |
| Commercial courtyards and pedestrian walkways | Provides a durable, discreet surface that reduces trip hazards and complements modern architectural designs. | Architects, specifiers, commercial builders |
Applying Lauxes Grates Tile Insert 128: Enhanced Protocols & Best Practices
-
1. Preparation & Measurement
Ensure the channel is clean, dry, and structurally sound. Measure the total run and mark cut points for exact tile alignment.
Pro Tip: Use Adheseal Surface Prep to clean contact points for maximum fit accuracy. -
2. Cutting to Size
Cut using a non-ferrous metal blade. Deburr edges for smooth tile seating. Allow a 2 mm expansion gap per metre of length.
Pro Tip: Check tile fit before final installation to ensure uniform height with surrounding pavers. -
3. Installation & Finishing
Place the tile insert into the channel, ensuring snug alignment. Fill recess with tile adhesive and set tile flush with the frame edge.
Pro Tip: Seal edges using Adheseal Non-Staining Tile Silicone to prevent water tracking and tile movement.
Product limitations
- Not for: Environments with acidic or corrosive waste discharge. The aluminium may degrade under such conditions.
- Avoid: Contact with harsh chemical cleaners. These can dull or damage the powder-coated finish.
Safety and handling
Personal protective equipment
Wear safety gloves and eye protection when cutting or handling the grate to prevent injuries from sharp edges or metal burrs.
Ventilation
Always cut the aluminium profile in a well-ventilated area. Avoid inhaling fine aluminium dust.
Substrate guide
Proper preparation ensures optimal performance and longevity for the Lauxes Midnight Storm Water Tile Insert. This guide covers common substrates.
Concrete channels
Surface prep: Ensure the concrete channel is fully cured, clean, and dry. Remove all dust, laitance, loose material, or contaminants that could interfere with the grate's mechanical seating.
Primer: Not required. The grate system relies on a mechanical fit within the channel.
Plastic stormwater channels
Surface prep: Wipe down plastic edges with Adheseal Surface Prep or isopropyl alcohol. This removes residues and ensures clean contact points for any optional sealing. Verify all clips and fitment slots are intact.
Primer: Not required. The grate locks mechanically. If additional waterproofing or anti-rattle stability is needed, apply a small bead of Adheseal MS Construction Sealant along edge joints.
Tiled or paved surrounds
Surface prep: Pre-plan tile layout for alignment with the grate frame. Clean any adhesive or grout residue from tile edges to allow for proper seating of the tile insert.
Primer: Optional. For watertight joints that maintain flexibility, use Adheseal Non-Staining Tile Silicone when sealing tile edges. This prevents edge lifting or tracking.
Lauxes Grates Midnight Storm Water Tile Insert 128 Physical Properties
| Property | Value |
|---|---|
| Product Name | Lauxes Grates Midnight Storm Water Tile Insert 128 |
| Material | UV-stabilised Aluminium |
| Top Tray Only | Yes |
| Depth | 19 mm |
| Width | 128 mm |
| Available Lengths | 3000 mm, 5600 mm, Custom |
| Load Rating | 10.2 tonnes |
| Tile Compatibility | Up to 13 mm thick |
| Colour | Midnight Black |
| Finish | Powder-coated |
| Warranty | Lifetime Rustproof |
| UV Guarantee | 25 Years No Discolouration |
| Cutting Method | Onsite with Aluminium Drop Saw |
| Country of Manufacture | Australia |
