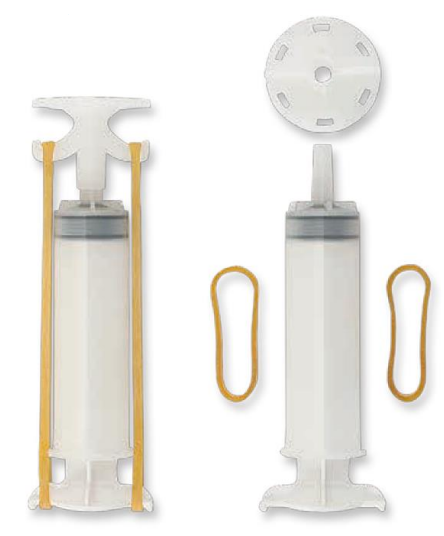

Use Injection Syringes for: Low-pressure injection repair of small concrete cracks in car parks, balconies, concrete walls, pools, and other structural concrete elements.
The Injection Syringe Crack Repair Low Pressure System is a practical and efficient method for addressing small cracks in concrete structures. This system leverages low-pressure injection to ensure thorough penetration of repair materials, effectively restoring the structural integrity of concrete elements. Designed for ease of use and versatility, these syringes can be employed in a variety of settings, from parking garages to residential balconies. The system's compatibility with diverse epoxy products allows for tailored solutions to specific repair needs, providing a reliable and cost-effective approach to concrete crack repair.
Key Features of Injection Syringe Crack Repair Low Pressure System
-
Low Pressure Injection: Ensures effective penetration of repair materials into small cracks without causing further damage.
-
Versatile Application: Suitable for a wide range of structural repair jobs, including car parks, balconies, concrete walls, and pools.
-
Epoxy Compatibility: Syringe is suitable for use with various epoxy products, providing flexibility in material selection.
-
Precise Application: Allows for targeted and controlled injection of repair materials, minimising waste and ensuring effective crack filling.
-
Durable Repair: Provides a reliable and long-lasting solution for small concrete crack repair.
-
Cost-Effective: Offers an efficient and economical method for addressing concrete cracks, reducing the need for more extensive repairs.
Technical Overview
The Injection Syringe Crack Repair Low Pressure System utilises a simple yet effective mechanism to deliver repair materials into concrete cracks. The syringes are designed to hold and dispense epoxy at a controlled low pressure, ensuring thorough crack filling and effective bonding. This low-pressure approach minimises the risk of over-injection and damage to the surrounding concrete, making it an ideal method for small, delicate repairs.
Filling Capacity: 50 ml/cc
Maximum Pressure: 3.0 kgf/cm2
Maximum Length: 225 mm
Minimum Length: 147 mm
Application Information
-
Materials Required: Injection syringes, epoxy products (e.g., Sikadur 52), anchoring epoxy (e.g., Sika Anchorfix 1), syringe pedestals, rubber bands (optional), hand grinder.
-
Installation Guidelines:
- Clean the surface and remove dust or contamination from the crack.
- Install syringe pedestals (5-6 syringes per meter, 10-20 cm apart depending on crack thickness).
- Secure pedestals with anchoring epoxy, covering the top of the crack. Ensure the product has cured before injection.
- Draw mixed epoxy into the syringe (30cc) and mount the syringe into the pedestal.
- Inject epoxy via the pedestal until flow from the adjacent pedestal or until epoxy stops flowing.
- Attach rubber bands to apply constant pressure if required.
- After epoxy hardens, remove syringes and pedestals and restore surface finish with a hand grinder.
-
Trade-Specific Tips: Ensure proper surface cleaning and pedestal installation for effective crack sealing. Monitor epoxy flow during injection to prevent overfilling.
Limitations
- Primarily designed for small concrete cracks.
- Effectiveness depends on the chosen epoxy product and proper application technique.
Safety precautions when using Injection Syringe Crack Repair Low Pressure System:
-
Personal Protective Equipment: Wear appropriate gloves, safety glasses, and respiratory protection if necessary, in accordance with the safety data sheets of the epoxy products being used.
-
Epoxy Handling: Follow safety instructions provided by the epoxy product manufacturer. Avoid skin and eye contact.
-
Surface Preparation: Ensure proper cleaning and preparation of the crack area.
