At a Glance: Key Applications
Use Balcony Drip Trim for: Protecting balcony fascias from water damage, delivering a clean edge finish, and directing runoff away from external cladding or render.
Balcony Drip Trim System: A Technical Overview

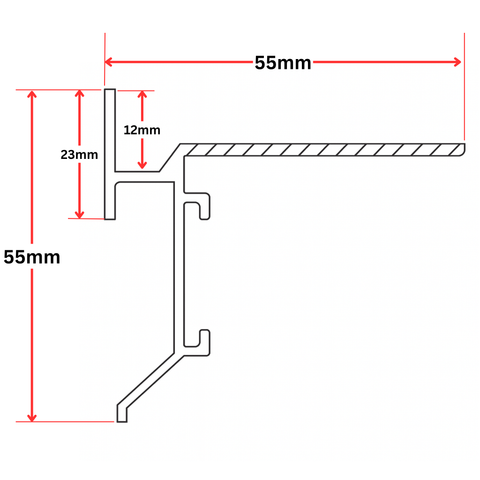

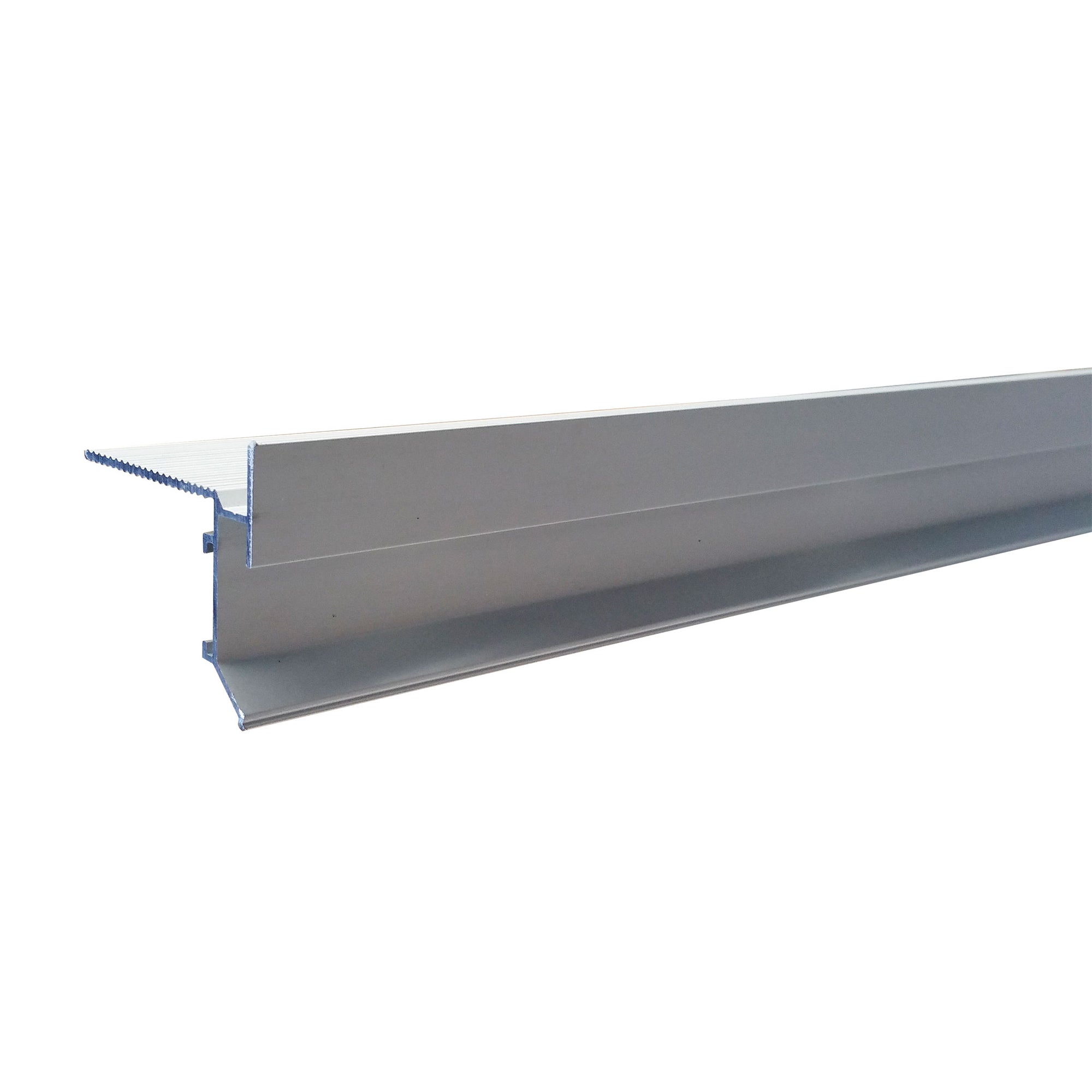

The Balcony Drip Trim System is engineered to enhance both the functional performance and aesthetic presentation of tiled or rendered balconies. Designed with a precision-angled lip at the base, the trim ensures water runoff is redirected away from the fascia, effectively reducing the risk of unsightly watermarks, staining, and substrate deterioration. Internal and external corners are available to allow seamless transitions along perimeter edges, providing a sleek, continuous finish. This solution is ideal for builders and waterproofers seeking long-term moisture management and a clean architectural look.
Core Features & Specifications
- Anodised aluminium construction for corrosion resistance in exposed environments
- Integrated drip lip design prevents runoff from reaching the balcony fascia
- Available in internal and external corner profiles for consistent edge detailing
- Helps reduce maintenance by preventing staining and moisture damage
- Sleek, minimal profile supports professional finishes in tiled and waterproofed assemblies
The Balcony Drip Trim Advantage
- Prevents water from tracking back onto facades, preserving surface integrity
- Delivers a sharp visual transition between balcony surfaces and external finishes
- Streamlines installation with pre-formed internal and external corner pieces
- Suitable for residential, commercial, and multi-storey construction projects
Frequently Asked Questions About Balcony Drip Trim System
Q: How does the drip lip prevent staining on balcony fascias?
A: The angled lip at the base of the trim redirects water runoff away from the balcony edge, preventing it from clinging to the underside. This stops the formation of watermarks and reduces long-term substrate damage.
Q: Can these trims be used with tiled balcony systems?
A: Yes. The trims are ideal for use with tiled balconies. They provide a defined edge to screeds and tile systems while managing drainage efficiently, especially when installed with membranes beneath.
Q: Are the corner pieces included or sold separately?
A: Internal and external corners are sold separately. They are designed to match the linear trim profile and allow seamless changes in direction around balcony perimeters.
Q: Is anodised aluminium suitable for coastal environments?
A: Yes, anodised aluminium provides corrosion resistance suitable for standard outdoor applications. However, for extreme coastal zones, additional marine-grade coatings may be recommended.
Q: What trade typically installs these balcony trims?
A: These trims are commonly installed by waterproofers, tilers, and builders during balcony construction or remediation projects. They integrate with membranes and tiling substrates to deliver a weather-protected edge.
Applications & Benefits
| Application / Use Case | Key Benefit | Primary Trades |
|---|---|---|
| Balcony edge finishing | Prevents water tracking and enhances finish | Builders, Waterproofers, Tilers |
| Fascia protection | Stops staining and erosion of external surfaces | Waterproofers, Cladding Specialists |
| Corner detailing | Achieves seamless transitions at 90° angles | Tilers, Builders |
| Visual edge control | Sharp, professional architectural finish | Architects, Builders |
Applying Balcony Drip Trim System: Protocols & Best Practices
General Application Steps:- Preparation: Ensure the substrate is clean, dry, and stable. Align the trim with the edge line. For tiled systems, allow space for tile thickness.
- Application: Cut the trim to size. Secure with compatible adhesive or mechanical fixings, depending on substrate. Ensure the drip lip is facing outward and positioned correctly.
- Finishing: Press firmly into tile adhesive or mortar. When corner pieces are used, ensure joints are aligned to maintain continuity.
- Waterproofing: Where used with membranes, ensure the trim does not breach the waterproofing layer. Seal or tape where necessary.
For Waterproofers: Managing Balcony Edge Drainage
The Engineering Challenge: Preventing water ingress and fascia staining in exposed balconies without compromising waterproofing continuity.
The System-Based Solution with Balcony Drip Trim: The integrated lip deflects runoff, while corner trims ensure no weak points. No membrane penetration required when using edge adhesion.
Best Practice Note: Always install the trim after the membrane cures, and lap the membrane over internal upturns where possible.
For Tilers: Clean Finishes at Balcony Perimeters
The Engineering Challenge: Exposed tile edges are prone to chipping, misalignment, and inconsistent grout lines.
The System-Based Solution with Balcony Drip Trim: Provides a crisp edge line for tile layout while preventing grout washout at external junctions.
Best Practice Note: Use internal/external corners to simplify layouts and reduce miter cuts.
Limitations & Safety
Product limitations and safety information
Limitations:
- Not suitable for structural load-bearing use.
- Do not install before membrane curing when used in waterproofing systems.
- Corner pieces must be installed using correct alignment to prevent water trapping.
Safety & Handling:
- PPE: Gloves and eye protection recommended when cutting aluminium trims.
- Ventilation: Not required; inert product.
- Handling: Use care when handling long lengths to avoid bending or kinking.
- First Aid: In case of injury from sharp edges, clean wound and apply antiseptic dressing.
Balcony Drip Trim System Adhesion & Preparation Guide
-
Substrate preparation guidelines
- Concrete Screed: Ensure dust-free and dry before installing trim edge – Primer: No primer required.
- Waterproof Membrane: Allow membrane to fully cure before mechanical fixing of trim – Primer: Not applicable.
- Tile Adhesive Bed: Press trim firmly into bed while adhesive is wet – Primer: No primer required.
